HARDWARE FEATURES
Interface 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button Power On/Off Button, WPS Button, Reset Button
External Power Supply 12V/1.5A
Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ) 8.9 × 5.7 × 1.5 in
(225×145.5×37 mm)
Antenna Type 4 Fixed High Performance Antennas
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity 5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Transmit Power < 30dBm
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP Server, DHCP Client List
Quality of Service WMM
Advanced Functions Captive Portal
OTHERS
Certification CE, FCC, RoHS

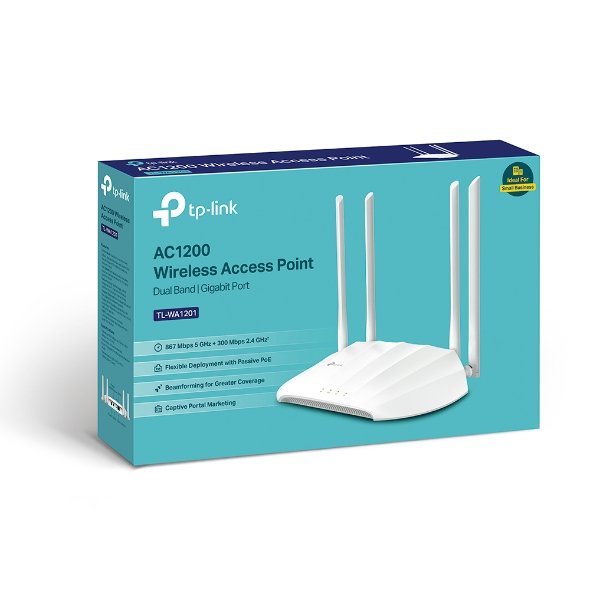

Package Contents Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
Environment Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Protocol Support IPv4, IPv6
For additional version information, please go to the support page.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of MU-MIMO requires clients to also support MU-MIMO.
