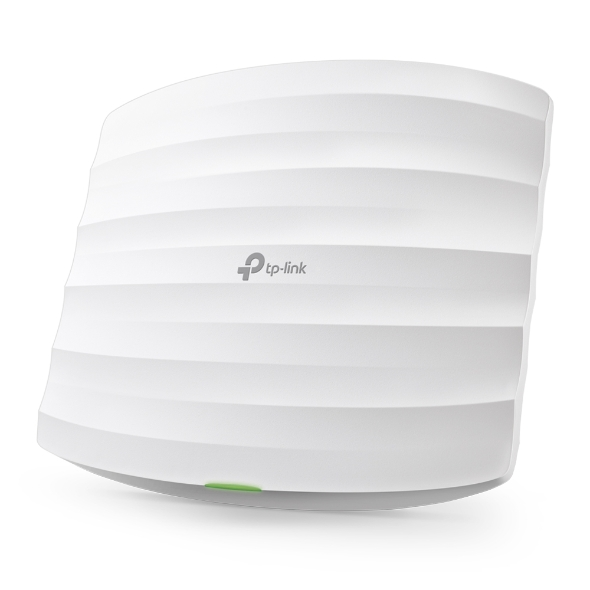

    TP-Link EAP110 300Mbps W/less N Ceiling Mount Access Point

    Manufacturer: Tp-Link
    Free cloud centralized management and Omada app for ultra convenience and easy management Supports passive PoE for convenient installation up to 100meters Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies Multi-SSID divides multiple wireless networks for different users Enterprise class Wi-Fi security help to decrease network security threats Supports management vlan for an enhanced network management
    SKU: NAP0003
    Availability: 31 in stock
    €40.80 incl VAT
    i h

    Interface Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
    Button Reset
    Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
    Power Consumption 7.7W
    Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
    Dimensions 7.5×6.8×1.2 in.
    (189.4×172.3×29.5mm)
    Antenna Type Internal 2* 3dBi Omni
    Mounting Ceiling /Wall Mounting (Kits included)
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Frequency 2.4-2.4835GHz
    Signal Rate 11n: Up to 300Mbps(dynamic)
    11g: Up to 54Mbps(dynamic)
    11b: Up to 11Mbps(dynamic)
    Reception Sensitivity 300M: -71dBm@10% PER
    150M: -75dBm@10% PER
    54M: -78dBm@10% PER
    11M: -93dBm@8% PER
    6M: -92dBm@10% PER
    1M: -96dBm@8% PER
    Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client
    Wireless Security Captive Portal Authentication
    Access Control
    Wireless MAC Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
    Transmission Power CE:
    ≤19dBm(EIRP)
    FCC:
    ≤21dBm
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Omada Controller Software Yes
    Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1,v2c
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    Management VLAN Yes
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP110
    Passive PoE Adapter,
    Power Cord,
    Mounting Kits,
    Installation Guide
    System Requirements Microsoft Windows 10/8/7/Vista/XP
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
