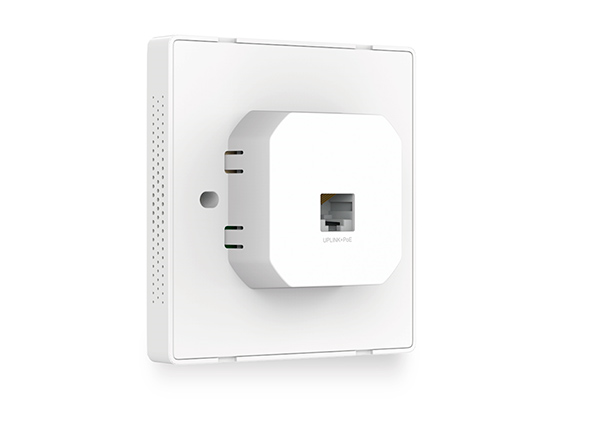

TP-Link EAP-115 (WALL) 300Mbps W/Less N Wall-Plate Access Point EAP115-Wall

HARDWARE FEATURES
Interface 10/100Mbps Ethernet (RJ-45) Port *2
Physical Security Lock -
Button LED/Wi-Fi Button、RESET
Power Supply PoE(IEEE 802.3af)
Power Consumption 2.8 W
Dimensions ( W x D x H ) 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)
Antenna Type Internal 2*1.8dBi Omni
Mounting Wall Plate Mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power CE：
≤20dBm(2.4GHz)
Wireless Functions Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, RoHS
Package Contents 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
