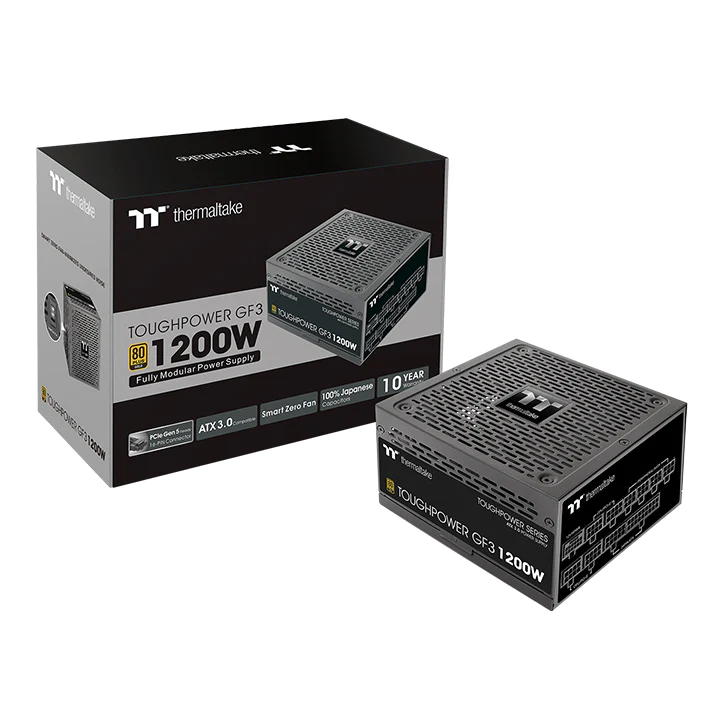

Thermaltake Toughpower GF3 1200W Fully Modular 80 Plus Gold

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards. Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.

SKU: CPO0095

Manufacturer part number: PS-TPD-1200FNFAGE-4

Availability: 10 in stock

€235.00 incl VAT

Qty:

i h

WATTS 1200W
MODEL TPD-1200AH3FCG
MAX. OUTPUT CAPACITY 1200W
COLOR Black
DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
WEIGHT 1.88 KG
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-150 msec
HOLD UP TIME > 17msec at 100% of full load
INPUT CURRENT 15.0A / 7.0A
INPUT FREQUENCY RANGE 50/60Hz
INPUT VOLTAGE 100V – 240V~
OPERATING TEMPERATURE 0°C to + 40°C
OPERATING HUMIDITY 20% to 90%,non-condensing
STORAGE TEMPERATURE -20°C to + 70°C
STORAGE HUMIDITY 5% to 95%, non-condensing
COOLING SYSTEM 13.5cm fluid bearing fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E 6+2PIN
PCIe 6+2pin X 4
PCIe 12+4pin X 1
PROTECTION OCP, OVP, UVP, OPP, SCP, OTP
