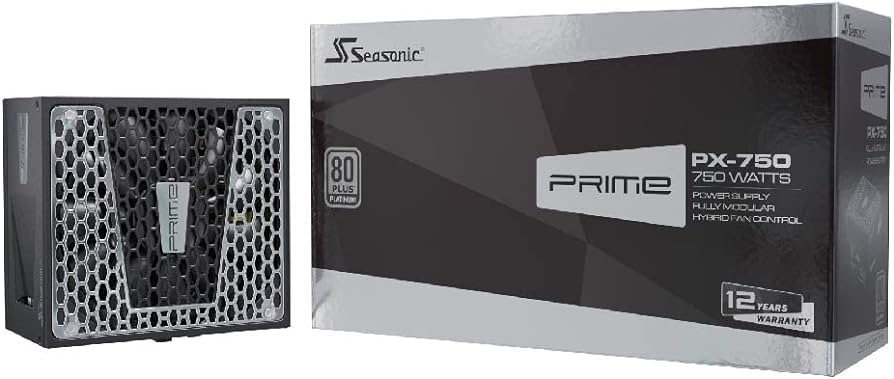

Seasonic PRIME PX-750 750W 80+ Platinum Fully Modular

Manufacturer: Seasonic

Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series. The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

SKU: CPO0085

Manufacturer part number: PRIME-PX-750

Availability: 1 in stock

€209.00 incl VAT

Qty:

i h

80PLUS® Platinum
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 15 - 10 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A
125 W 1600 W 6 W 15 W
Total Continuous Power 1600 W 115—240Vac, 1300 W 100-240 Vac
CABLES
PRIME-PX-1600
Cable type Connector(s) per cable Total Length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 700 3
PCIe-750-2x PCIe (8/6 pins) 2 750 0
PCIe-750-1x PCIe (8/6 pins) 1 750 8
SATA-810-4x-90 SATA 4 950 4
SATA-800-4x-180 SATA 4 860 0
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 3.3 V 2 550 1
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 0
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 0
12VHPWR 12VHPWR 1 (12+4 Pins to 8+8 Pins) 750 2
