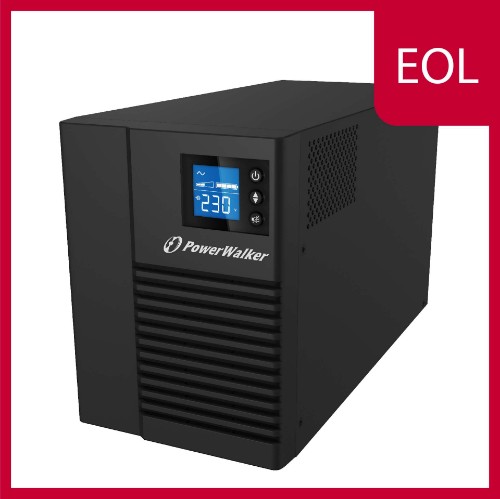

PowerWalker VI 1000T/HID/UK Art No. 1012 1016

PowerWalker VI 500-1500 T/HID are Line-Interactive UPS series with pure sine wave output and designed for fulfilling high quality power protection demand. It offers a pure sine wave output for smooth operation even in battery mode. A Human Interface Device (HID) compatible USB port allows monitoring basic UPS status on Windows, Mac OS, Linux systems without installing additional software. HID Power Devices are supported by computer OS’s internal power management originally. This also makes this model best choice for all equipment that is not suitable for installing monitoring software but supports USB-HID like NAS, HID compatible surveillance video recording systems, ATM etc. With its compact foot print PowerWalker VI T/HID fits easily into small spaces such as ATM, Kiosks, narrow industrial and office applications.

SKU: PUP0042

Availability: Out of stock

€216.98 incl VAT

Qty:

i h

General Features
Type	Line-Interactive (VI)
Form Factor	Tower
Power Capacity	1000VA / 700W
Output Power Factor	0.70
Input
Input Voltage Range	184-276 VAC
Frequency Range	45Hz – 65Hz (self-adaptive to 50/60Hz)
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
Voltage Regulation (Battery Mode)	-10% / +6%
Input & Output Connectors
Input Connector	C14-UK
Output Type	IEC – UK
IEC C13	8
Technical Details
LINE Mode Efficiency [%] (Full Load)	95.0
Battery Mode Efficiency [%] (Full Load)	80.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	3-7ms typical (10ms max)
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	HID – Human Interface Device, Potential Equalization Screw
IEC 62040-3 classification	VI-SY-333
Batteries and Autonomy
Batteries	2x 12.0V/7.0Ah
DC Voltage	2x 12.0V
Recharge Time	3h to 90%
Full Load Backup Time [min]	3.7
Half Load Backup Time [min]	11.0
Communication
Communication	USB Type B – for Monitoring Software
Software	WinPower
Environment
Noise Level	< 40dB
Fan Logic	Fan Off: Normal Mode (Load Dependent) Fan On: AVR ON, Battery Mode, Battery Charging
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
Logistics
Package Content	Input Power Cable, Manual, USB Cable, IEC Cable, Product
Manual Languages	PL, EN
EAN	4260074976755
Product Dimensions (DxWxH) [mm]	340 x 150 x 209 mm
Product Weight [kg]	10.5
Package Dimensions (DxWxH) [mm]	308 x 476 x 238 mm
Package Weight [kg]	11.0
Pcs. per Outer Carton	1
Pcs. per Layer	7
Pcs. per Pallet	42
Pcs. per Pallet [Oversized]	42
