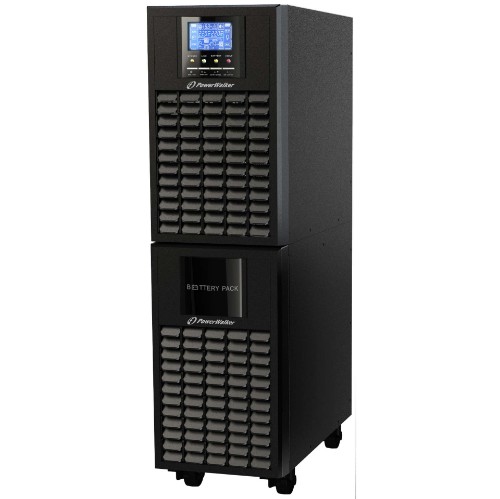

PowerWalker VFI 6000CT LCD Art No. 10122 22

With true double-conversion online UPS design, PowerWalker VFI 6000-10000 CT LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.

SKU: PUP0050

Availability: Out of stock

€1403.87 incl VAT

Qty:

i h

General Features
Type	Online Single Phase (VFI)
Form Factor	Tower
Power Capacity	6000VA / 5400W
Output Power Factor	0.90
Input
Input Voltage Range	Voltage Range Low Line Transfer 176 VAC ± 3% @ 100% load 110 VAC ± 3% @ 50% load Voltage Range Low Line Comeback 186 VAC ± 3% @ 100% load 120 VAC ± 3% @ 50% load Voltage Range High Line Transfer 300VAC ± 3% Voltage Range High Line Comeback 290VAC ± 3VAC
Max THDi	<5% @ 100% RCD Load
Frequency Range	46Hz – 54Hz or 56Hz – 64Hz
Frequency (Synchronized Range)	46Hz – 54Hz or 56Hz – 64Hz
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	208/220/230/240 VAC
THDv	≤3% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0,1Hz
Input & Output Connectors
Input Connector	Terminal
Output Type	Terminal
Terminal Output	Yes
Technical Details
LINE Mode Efficiency [%] (Full Load)	94.0
Battery Mode Efficiency [%] (Full Load)	90.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	0ms
Load Crest Ratio	3:1
IEC 62040-3 classification	VFI-SS-111
Batteries and Autonomy
Batteries	16x 12.0V/9.0Ah
DC Voltage	16x 12.0V
Recharge Time	9h to 90%
Full Load Backup Time [min]	6.5
Half Load Backup Time [min]	17.0
Charger	2A (adjustable), 1A
External Battery Pack	Yes
Communication
Software	ViewPower
Environment
Noise Level	< 55dB
Temperature	0°C – 50°C
Humidity	0% – 95% RH (non-condensing)
Logistics
Package Content	USB Cable, Manual
Manual Languages	DE, PL, EN
EAN	4260074977752
Product Weight [kg]	61.0
Package Weight [kg]	67.0
Pcs. per Outer Carton	1
Pcs. per Layer	8
Pcs. per Pallet	8
Pcs. per Pallet [Oversized]	8
