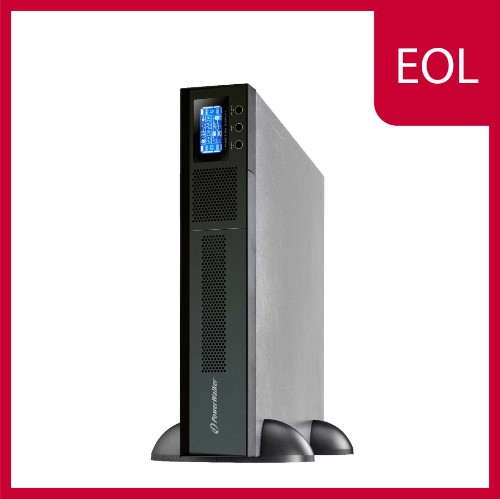

PowerWalker VFI 3000RM LCD/UK Art No. 10120158

With true double-conversion online UPS design, PowerWalker VFI 1000-3000 RM LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.

SKU: PUP0018

Availability: Out of stock

€795.92 incl VAT

Qty:

i h

General Features
Type	Online Single Phase (VFI)
Form Factor	Rack
Power Capacity	3000VA / 2700W
Output Power Factor	0.90
Input
Input Voltage Range	Voltage Range Low Line Transfer 160/140/120/110VAC ± 5% Voltage Range Low Line Comeback 170/150/130/120VAC ±5% Voltage Range High Line Transfer 300VAC ± 5% Voltage Range High Line Comeback 290VAC ± 5VAC
Max THDi	≤5%
Frequency Range	45Hz – 55Hz or 56Hz – 65Hz
Frequency (Synchronized Range)	48Hz – 52Hz or 58Hz – 62Hz
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	208/220/230/240 VAC
THDv	≤2% Full Linear Load; ≤4% max. in Batt. Mode before shutdown
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0,2Hz
Input & Output Connectors
Input Connector	C20-UK
Output Type	IEC – UK
IEC C13	8
IEC C19	1
Technical Details
LINE Mode Efficiency [%] (Full Load)	90.0
Battery Mode Efficiency [%] (Full Load)	90.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	4ms
Load Crest Ratio	3:1
IEC 62040-3 classification	VFI-SS-111
Batteries and Autonomy
Batteries	6x 12.0V/9.0Ah
DC Voltage	6x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	4.0
Half Load Backup Time [min]	12.0
Charger	1.5A
External Battery Pack	Yes
Communication
Software	ViewPower
Environment
Noise Level	< 45dB
Temperature	0°C – 40°C
Humidity	20% – 90% RH (non-condensing)
Logistics
Package Content	USB Cable, 2x IEC Cable, Manual, Input Power Cable, Rack Ears, Tower Holder
Manual Languages	DE, IT, RU, PL, FR, ES, PT, EN
EAN	4260074975284
Product Weight [kg]	29.0
Package Weight [kg]	34.8
Pcs. per Outer Carton	1
Pcs. per Layer	2
Pcs. per Pallet	16
Pcs. per Pallet [Oversized]	16
