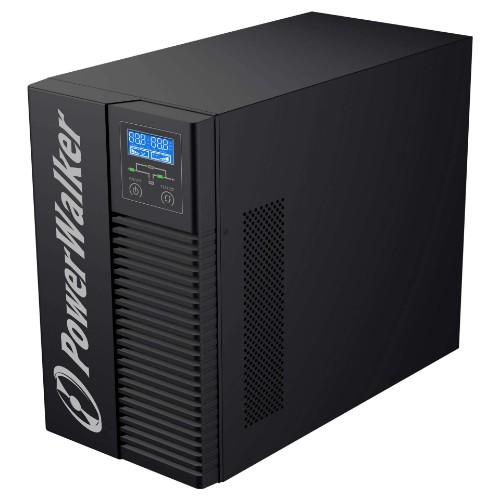

PowerWalker VFI 2000T/E LCD Art No. 1012 193

With true double-conversion online UPS design, PowerWalker VFI 1000-3000 T/E LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.The UPS has USB/RS-232 communication card included in the package. It allows communication via USB port (RS-232 is in-built by default). The card can be replaced with NMC Card for control over SNMP protocol.

SKU: PUP0055

Availability: Out of stock

€350.96 incl VAT

Qty:

i h

General Features
Type	Online Single Phase (VFI)
Form Factor	Tower
Power Capacity	2000VA / 1600W
Output Power Factor	0.80
Input
Input Voltage Range	Voltage Range in online mode is based on load percentage -Line low transfer 185±5 VAC (load 90-100%) 160±5 VAC (load 70-90%) 150±5 VAC (load 65-70%) 130±5 VAC (load 55-65%) 110±5 VAC (load <55) -Line low comeback 195±5 VAC (load 70-100%) 175±5 VAC (load <70%) -Line high transfer 300±5 VAC -Line high comeback 285±5 VAC Default Bypass Voltage 180-264 VAC Wide Bypass Voltage 80-285 VAC
Max THDi	≤10%
Frequency Range	40Hz – 70Hz (self-adaptive to 50/60Hz)
Frequency (Synchronized Range)	46Hz – 54Hz or 56Hz – 64Hz
Output
Waveform	Pure Sine Wave
Nominal Output Voltage	200/208/220/230/240 VAC
THDv	≤4% Full Linear Load; ≤7% Non-Linear Load
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0,5Hz
Input & Output Connectors
Input Connector	CEE 7/7
Output Type	IEC
IEC C13	6
Technical Details
LINE Mode Efficiency [%] (Full Load)	90.0
Battery Mode Efficiency [%] (Full Load)	83.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	4ms
Load Crest Ratio	3:1
IEC 62040-3 classification	VFI-SS-311
Batteries and Autonomy
Batteries	4x 12.0V/9.0Ah
DC Voltage	4x 12.0V
Recharge Time	7h to 90%
Full Load Backup Time [min]	4.5
Half Load Backup Time [min]	10.1
Communication
Software	WinPower
Environment
Noise Level	< 50dB
Temperature	0°C – 40°C
Logistics
Package Content	USB Cable, IEC Cable, Manual, Built-in USB/RS-232 Card
Manual Languages	PL, EN
EAN	4260074976878
Product Weight [kg]	17.2
Package Weight [kg]	18.0
Pcs. per Outer Carton	1
Pcs. per Layer	7
Pcs. per Pallet	28
Pcs. per Pallet [Oversized]	28
