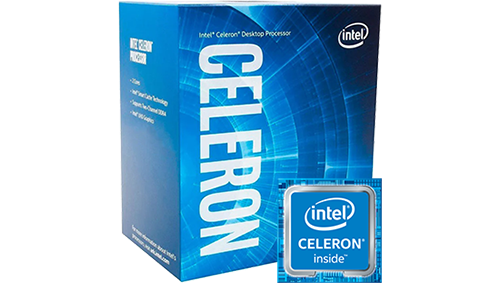

Intel Celeron G5905 S1200 58W Box

CPU Specifications
# of Cores 2

# of Threads 2

Processor Base Frequency 3.50 GHz

Cache 4 MB Intel® Smart Cache

Bus Speed 8 GT/s

TDP 58 W

Supplemental Information
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 128 GB

Memory Types DDR4-2666

Max # of Memory Channels 2

Max Memory Bandwidth 41.6 GB/s

Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 610

Graphics Base Frequency 350 MHz

Graphics Max Dynamic Frequency 1.05 GHz

Graphics Video Max Memory 64 GB

4K Support Yes, at 60Hz

Max Resolution (HDMI)‡ 4096x2160@30Hz

Max Resolution (DP)‡ 4096x2304@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz

DirectX* Support 12

OpenGL* Support 4.5

Intel® Quick Sync Video Yes

Intel® InTru™ 3D Technology Yes

Intel® Clear Video HD Technology Yes

Intel® Clear Video Technology Yes

# of Displays Supported ‡ 3

Device ID 0x9BA8

Expansion Options
Scalability 1S Only

PCI Express Revision 3.0

PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes 16

Package Specifications
Sockets Supported FCLGA1200

Max CPU Configuration1

Thermal Solution Specification PCG 2015C

TJUNCTION 100°C

Package Size 37.5mm x 37.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes

Intel® Thermal Velocity Boost No

Intel® Turbo Boost Max Technology 3.0 ‡ No

Intel® Turbo Boost Technology ‡ No

Intel vPro® Platform Eligibility ‡ No

Intel® Hyper-Threading Technology ‡ No

Intel® Virtualization Technology (VT-x) ‡ Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes

Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Intel® Transactional Synchronization Extensions No

Intel® 64 Yes

Instruction Set 64-bit

Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2

Idle States Yes

Enhanced Intel SpeedStep® Technology Yes

Thermal Monitoring Technologies Yes

Intel® Identity Protection Technology ‡ Yes

Intel® Stable Image Platform Program (SIPP) No

Security & Reliability
Intel® AES New Instructions
Yes

Secure Key Yes

Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME

Intel® OS Guard Yes

Intel® Trusted Execution Technology ‡ No

Execute Disable Bit ‡ Yes

Intel® Boot Guard Yes
