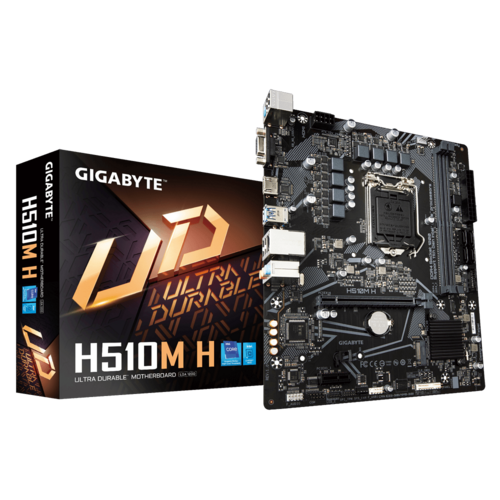

    Gigabyte H510M-H Intel S1200 mATX LGA 1200 GAH51MH-00-G13

    Manufacturer: Gigabyte
    Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management High Quality Audio Capacitors and Audio Noise Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
    SKU: CMB0145
    Manufacturer part number: GAH51MH-00-G13
    Availability: Out of stock
    €76.90 incl VAT
    i h

    CPU
    LGA1200 package:
    11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
    L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
    Chipset
    Intel® H510 Express Chipset
    Memory
    11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
    Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    LAN
    Realtek® GbE LAN chip (1 Gbit/100 Mbit)
    Expansion Slots
    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
    * Supported by 11th Generation processors only.
    1 x PCI Express x1 slot (PCIEX1_1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    Storage Interface
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    USB
    Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled Software
    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility
    Operating System
    Support for Windows 10 64-bit
    Form Factor
    Micro ATX Form Factor; 24.4cm x 21.0cm
