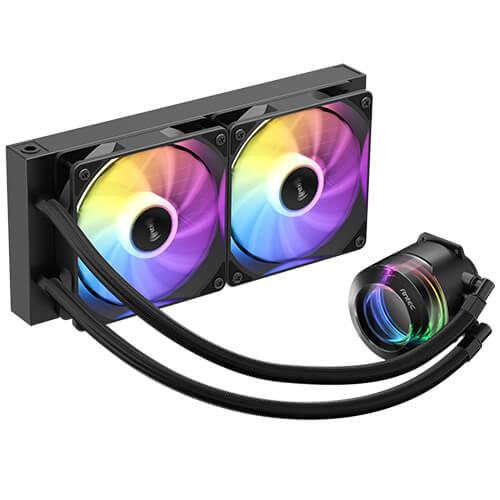

Antec Vortex Lum 240 ARGB 0-761345-40054-1

Manufacturer: Antec
Suspended Spiral Pump Head Design
SKU: CCW0184
Manufacturer part number: 0-761345-40054-1
GTIN: 0761345400541
Availability: 20 in stock
€104.00 incl VAT
i h
SPECIFICATIONS
Radiator
Radiator Dimensions277 x 120 x 27 mm (L x W x H)
Radiator MaterialAluminum
Pump
DimensionsΦ67*48.5 mm
Rating VoltageDC 12 V
Minimum Startup Voltage≥5.0  V
Fan Speed2800±10% RPM
Rated Current0.25±20% A
Consumed Power3.0 W
Flow rate≥1300 mL/min
Water Pressure1.4 m
Operation Temperature-10°C ~ +60°C
Noise Level≤28 dB(A)
Lifespan40,000 hours
ConnectorPUMP: 3-pin | LED: 3-pin
Fan
Dimensions120*120*25 mm
Bearing TypeHydraulic Bearing
LED TypeAddressable RGB
Fan Speed800±200~1800±10% RPM
Airflow71.5 CFM  (max.)
Air Pressure2.45 mmH₂O  (max.)
Fan Noise Level31 dB(A)
Lifespan40,000 hours
ConnectorPH 2.0 7-pin (PWM+ARGB)
Rated VoltageFAN: DC 12 V | LED: DC 5 V
Operation VoltageFAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated CurrentFAN : 0.20-0.25 A | LED : 0.32 A
Socket Compatibility CPUIntel: LGA 115X/1200/1700/20XX/1851
AMD: AM3/AM4/AM5
TDP≤ 260W
Warranty3 years
UPC#>0-761345-40054-1
