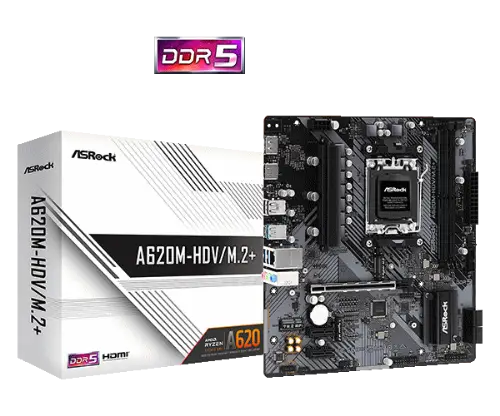

ASROCK A620M-HDV/M.2+ AMD AM5 A620/2DDR5

Manufacturer: Asrock
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 6+1+1 Power Phase, Dr.MOS 2 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Integrated AMD RDNA™ 2 Graphics* Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front) Realtek Gigabit LAN
SKU: CMB0246
Manufacturer part number: A620M-HDV/M.2+
GTIN: 4710483943034
Availability: 20 in stock
€91.00 incl VAT
i h
  • Unique Feature
    Superb Productivity
    - Dual Channel DDR5
    Rock-Solid Durability
    - 6+1+1 Power Phase, 50A Dr.MOS for VCore
    EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
  • CPU
    - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors**

    *Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)
    The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    - AMD A620
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 128GB
    - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *CPU_FAN1 supports the fan power up to 1A (12W).

    **CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 3 x USB 3.2 Gen1 Type-A Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
  • OS
    - Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
