HARDWARE FEATURES
Plug Type EU, UK, US
Interface 1 * 10/100M Ethernet Port (RJ45)
Button WPS Button, Reset Button
Power Consumption 3.6W
Antenna 2 *external
Dimensions ( W x D x H ) 3.15*3.06*3.04in. (80*77.8*77.3mm)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4~2.4835GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: <-68dBm@10% PER
130M: <-68dBm@10% PER
108M: <-68dBm@10% PER
54M: <-68dBm@10% PER
11M: <-68dBm@8% PER
6M: <-68dBm@10% PER
1M: <-68dBm@8% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender, AP Mode
Wireless Functions Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification CE, RoHS

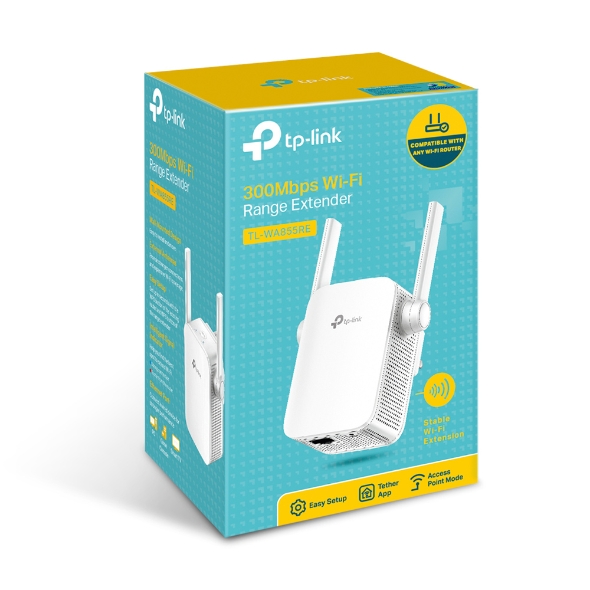

Package Contents 300Mbps Wi-Fi Range Extender TL-WA855RE
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
