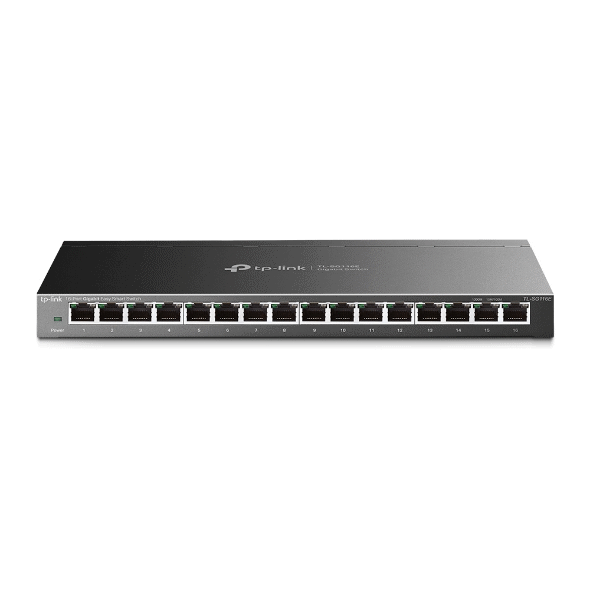

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

Manufacturer: Tp-Link

6 10/100/1000Mbps RJ45 ports Plug and play, with no configuration required Durable metal casing of superior quality and professional appearance Intelligent management via a web user interface and downloadable utility Green technology reduces power consumption

SKU: NSW0041

Manufacturer part number: TL-SG116E

Availability: 16 in stock

€93.40 incl VAT

Qty:

i h

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 12VDC/1.0A)
Dimensions ( W x D x H ) 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
Max Power Consumption 9.19W(220V/50Hz)
Max Heat Dissipation 31.36BTU/h
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
