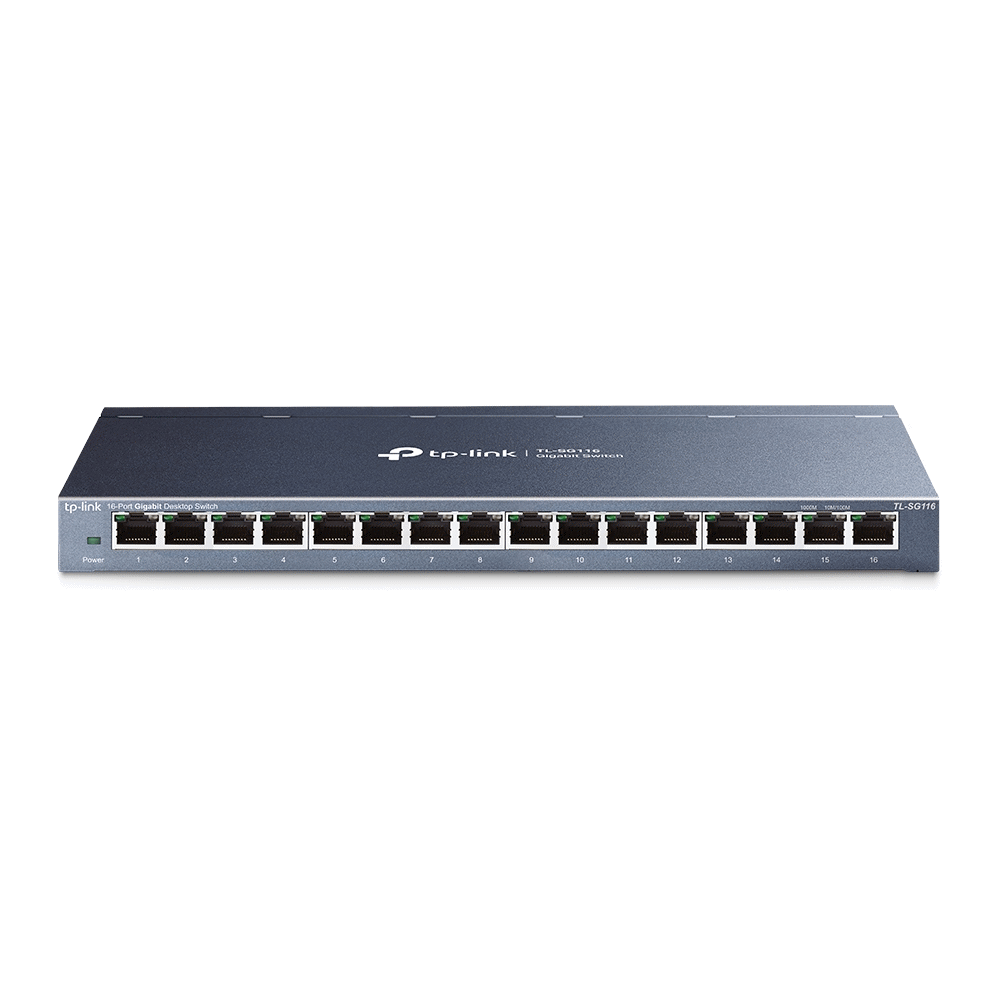

TP-Link TL-SG116 16-Port Desktop Switch

Manufacturer: Tp-Link

16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX Green Ethernet technology saves power consumption IEEE 802.3x flow control provides reliable data transfer Steel housing, desktop or wall-mounting design Support 802.1p/DSCP QoS and IGMP Snooping function Plug and play, with no configuration needed

SKU: NSW0042

Manufacturer part number: TL-SG116

Availability: 7 in stock

€79.40 incl VAT

Qty:

i h

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Interface 16 × 10/100/1000Mbps Ports
Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.3 × 4.4 × 1.0 in.
(286 × 112 × 25 mm)
Max Power Consumption 10W
Max Heat Dissipation 34.1 BTU/h
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
