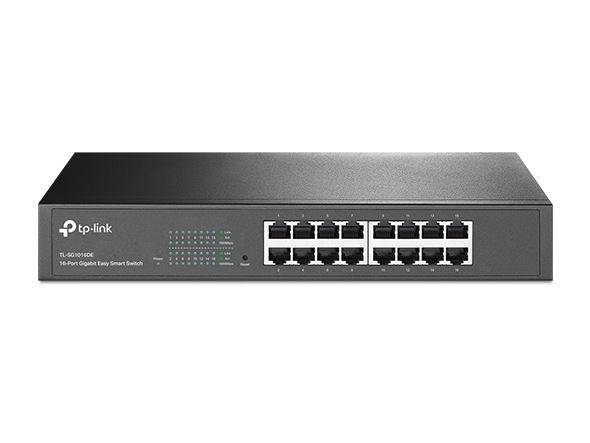

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch

Manufacturer: Tp-Link

16 10/100/1000Mbps RJ45 ports Provides network monitoring, traffic prioritization and VLAN features Green technology reduces power consumption Simple network set-up on top of plug-and-play connectivity Web-based user interface and management utility simplify configuration

SKU: NSW0040

Manufacturer part number: TL-SG1016DE

Availability: 11 in stock

€88.00 incl VAT

Qty:

i h

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 10.22W (220V/50Hz)
Max Heat Dissipation 34.5 BTU/h
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 10KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® for Easy Smart Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
