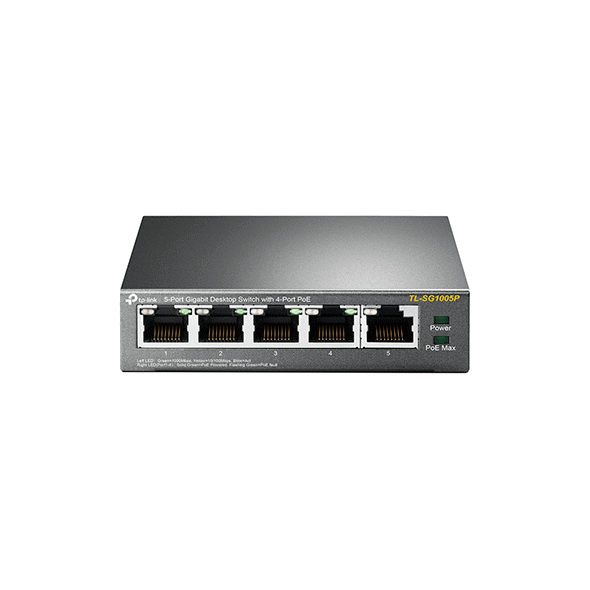

    TP-Link TL-SG1005P 5Port 100/1000mbps with 4-Port PoE+

    Manufacturer: Tp-Link
    5 10/100/1000Mbps RJ45 ports With four PoE ports, transfers data and power on one single cable Working with IEEE 802.3af compliant PDs, expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic Requires no configuration and installation
    SKU: NSW0036
    Manufacturer part number: TL-SG1005P
    Availability: 11 in stock
    €59.90 incl VAT
    i h

    Interface 5 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
    PoE Ports (RJ45) Standard: 802.3 af compliant
    PoE Ports: Port1- Port4
    Power Supply: 56W
    Backbound Bandwidth 10Gbps
    Mac Address Table 2K
    Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in.
    (100 × 98 × 25 mm)
    Max Power Consumption 4.0W(no PD load)
    64.4W(with 56W PD load)
    Max Heat Dissipation 13.5BTU/h(no PD load)
    219.9BTU/h(with 56W PD load)
    SOFTWARE FEATURES
    Advanced Features Compatible With IEEE 802.3af Compliant PDs
    Priority Function
    Mac Address Auto-Learning And Auto-Aging
    EEE802.3x Flow Control
    802.1p/DSCP QoS
    IGMP Snooping
    Transfer Method Store-And-Forward
    OTHERS
    Certification FCC, RoHS
    Package Contents TL-SG1005P, Power Adapter, Installation Guide
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~90%RH non-condensing
