HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Interface 1 Fixed 10/100 Ethernet WAN Port
1 Fixed 10/100 Ethernet LAN Port
3 Changeable 10/100 Ethernet WAN/LAN Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.6A DC Adapter
Flash 16MB
DRAM 128MB
LED PWR, SYS, WAN, LAN, WAN/LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.
(158 × 101 × 25mm)
PERFORMANCE
Concurrent Session 10K
BASIC FUNCTIONS
WAN Connection Type Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
MAC Clone Modify WAN/LAN MAC Address
DHCP DHCP Server/Client, DHCP Address Reservation
Switch Setting Rate Control, Port Configuration, Port VLAN
ADVANCED FUNCTIONS
ACL IP/MAC/URL/WEB Filtering
IGMP IGMP Proxy/IGMP Snooping
Forwarding Virtual Server, Port Triggering, DMZ
Load Balance Policy Routing, Link Backup
Routing Static Routing
Security FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding
Traffic Control Bandwidth Control, Session Limit
MANAGEMENT
Service Dynamic DNS, UPnP
Maintenance System Time Setting
Daylight Saving Time
SNMP
Diagnostics
Firmware Upgrade
Factory Defaults/Reboot
Backup/Restore
System Log
Remote Management
System Statistics
OTHERS
Certification CE, FCC, RoHS

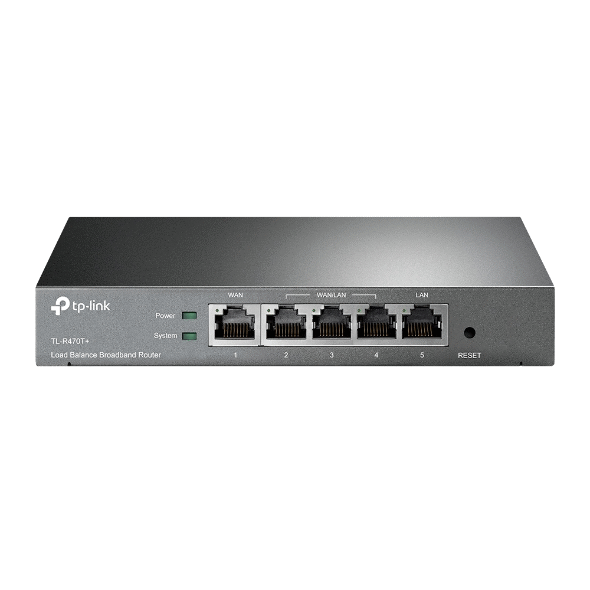

Package Contents TL-R470T+
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
