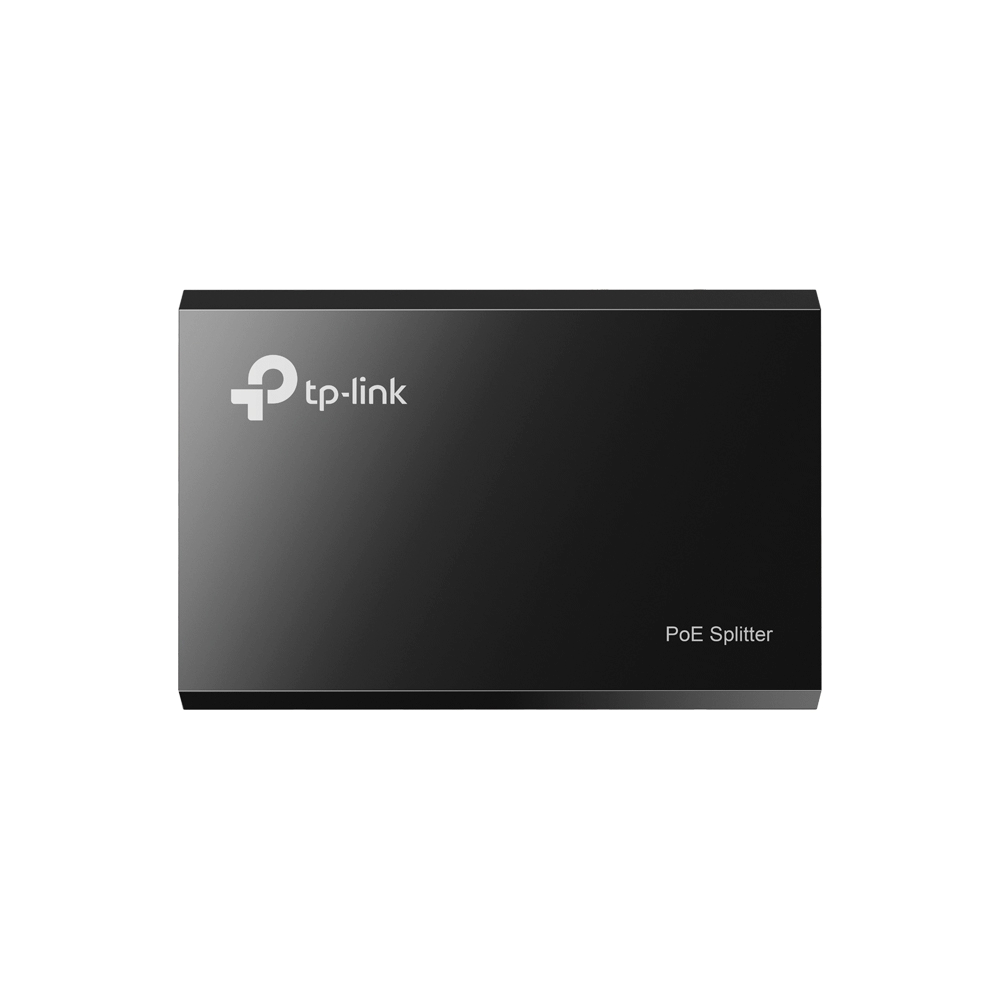

    TP-Link TL-POE10R PoE Splitter 12/9/5VDC output

    Manufacturer: Tp-Link
    IEEE 802.3af compliant Output: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable Gigabit speed support Plug-and-Play, requires no configuration
    SKU: NWI0003
    Availability: 2 in stock
    €11.40 incl VAT
    i h

    Interface 2 10/100/1000Mbps RJ45 Port
    AUTO Negotiation/AUTO MDI/MDIX
    1 POWER OUTPUT PORT (5.5 mm round barrel)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    100BASE-TX: UTP category 5, 5e cable (Max 100m)
    EIA/TIA-568 100Ω STP (Max 100m)
    1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
    Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
    Basic Function Compatible With IEEE 802.3af Compliant PSEs
    Delivers Power Up To 100 Meters
    Optional 12VDC, 9VDC or 5VDC Power Output
    LED Indicator PWR
    Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
    (81 × 54 × 24 mm)
    SOFTWARE FEATURES
    Basic Function Compatible with IEEE 802.3af compliant power sources (PSE)
    Delivers power up to 100 meters
    Selectable 12VDC, 9VDC or 5VDC power output
    OTHERS
    Certification FCC, RoHS
    Package Contents PoE Splitter TL-POE10R
    Power Cord
    RJ45 Cable
    Installation Guide
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
