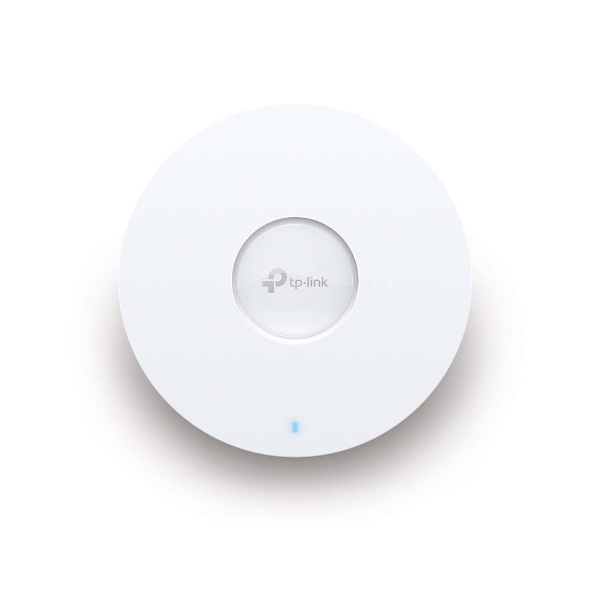

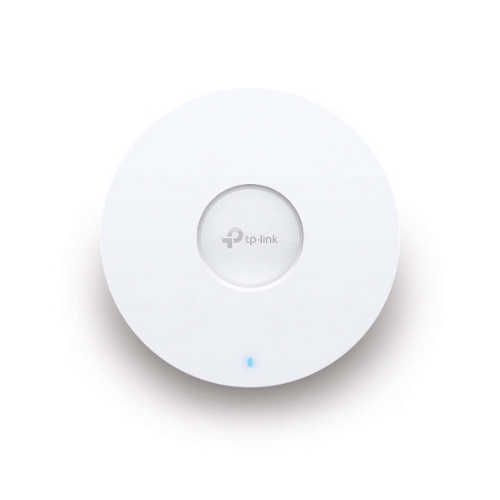

TP-Link EAP610 AX1800 Ceiling Mount WiFi 6 Access Point

Manufacturer: Tp-Link

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† High-Efficiency WiFi 6: More connected devices can enjoy faster speeds. Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§ Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§ PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations. Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

SKU: NAP0037

Manufacturer part number: EAP610

Availability: Out of stock

€134.00 incl VAT

Qty:

i h

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
Button Reset
Power Supply • 802.3at PoE
• 48 V Passive PoE
• 12 V / 1.5 A DC
Power Consumption • EU: 13.7 W (For PoE); 12.3 W (for DC)
• US: 14.2 W (For PoE); 12.8 W (for DC)
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting • Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP610
• Power Adapter
• Ceiling/ Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
