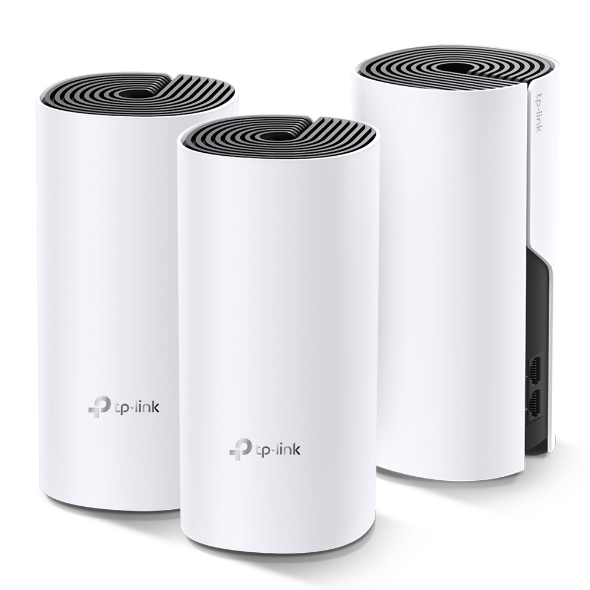

TP-Link Deco E4 (3-pack) AC1200 Whole Home Mesh Wi-Fi System

Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3-4 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Medium
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Silmultaneously communicates with multiple MU-MIMO clients
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Qualcomm CPU
Ethernet Ports 2× 10/100 Mbps Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
Power 12 V ⎓ 1 A
SECURITY
WiFi Encryption WPA
WPA2
Network Security SPI Firewall
Access Control
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (W×D×H) 3.6 × 3.6 × 7.5 in
(90.7 × 90.7 × 190 mm)
Package Contents Deco E4 (3-pack)
3 Deco E4R Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide

Deco E4 (2-pack)
2 Deco E4R Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide

Deco E4 (1-pack)
1 Deco E4R Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
OTHERS
System Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
