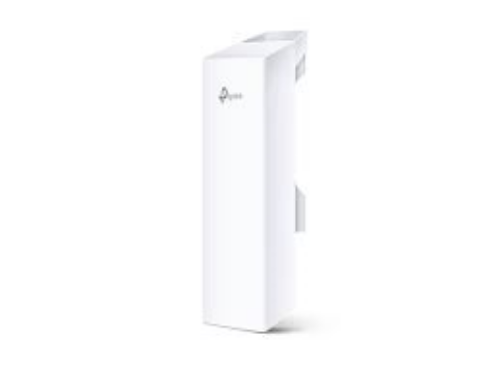

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE

Manufacturer: Tp-Link

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 27dBm/500mw System-level optimizations for more than 5km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System – Pharos Control AP / Client / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SKU: NAP0004

Availability: 6 in stock

€53.10 incl VAT

Qty:

i h

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 8.8 x 3.1 x 2.4 in.
Antenna Type Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Transmission Power 27dBm/500mw (1dBm step adjustable)
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11b/g/n modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 4.3 x 2.2 x 1.3 in
Interfaces 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency > 80%
Certifications FCC
OTHERS
Certification FCC, RoHS, IPX5
Package Contents Outdoor Wireless CPE
24VDC Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
