HARDWARE FEATURES
Interface 3 10/100 RJ45 LAN Ports
1 10/100/1000 RJ45 LAN/WAN Port
1 RJ11 Port
1 USB 2.0 Port
Button WPS Button
Wireless On/Off Button
Power On/Off Button
Reset Button
Power Supply 12V/1.5A
IEEE Standards IEEE 802.3
IEEE 802.3u
802.3ab
VDSL2 Standards ITU G.993.2, Up to 17a pro le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 243.5×167.5×32.7mm
Antenna Type 3 fixed external antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Wireless Speeds 867Mbps at 5GHz
300Mbps at 2.4GHz
Transmit Power 2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering
Wireless Schedule Support 2.4GHz and 5GHz Wireless Schedule
SOFTWARE FEATURES
Quality of Service ATM QoS, Bandwidth Control
Security NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router,3G/4G Router
Management Web Based Con guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Passthrough
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer
Server, 3G/4G Modem
Guest Network 2.4GHz guest network, 5GHz guest network
IPSec VPN Supports up to 10 IPSec VPN tunnels
Beamforming 5GHz
OTHERS
Certification CE, RoHS

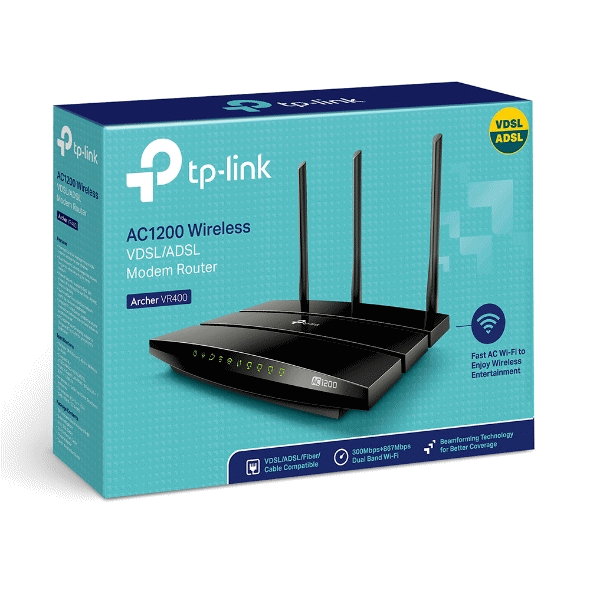

Package Contents · AC1200 Wireless VDSL/ADSL Modem Router Archer VR400
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide
System Requirements · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access)
Environment · Operating Temperature: 0℃~40℃ (32℉ ~104℉)
· Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
