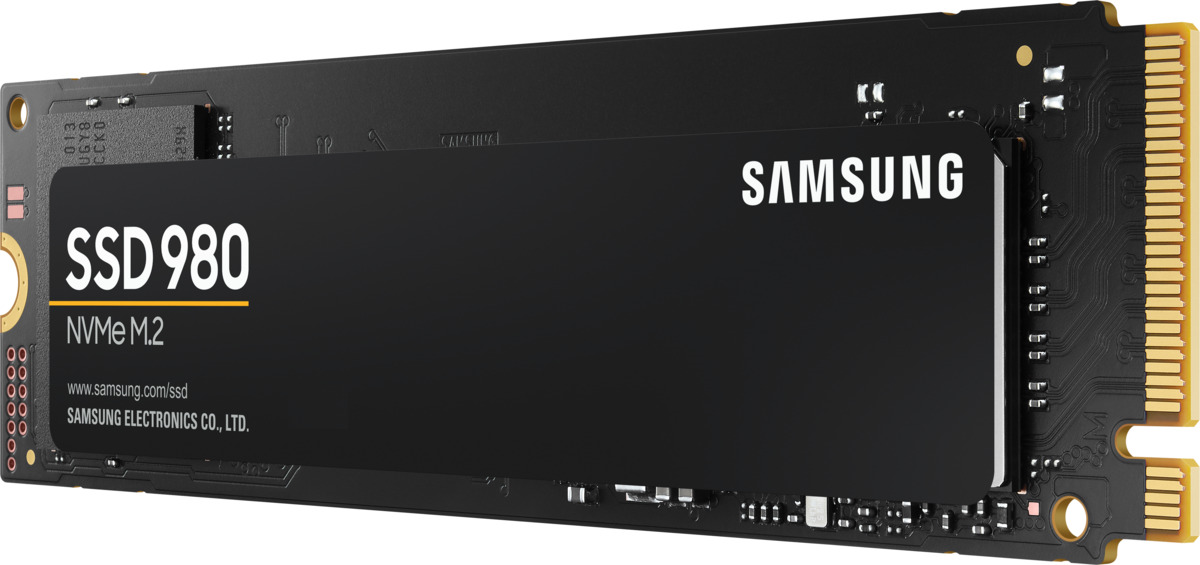

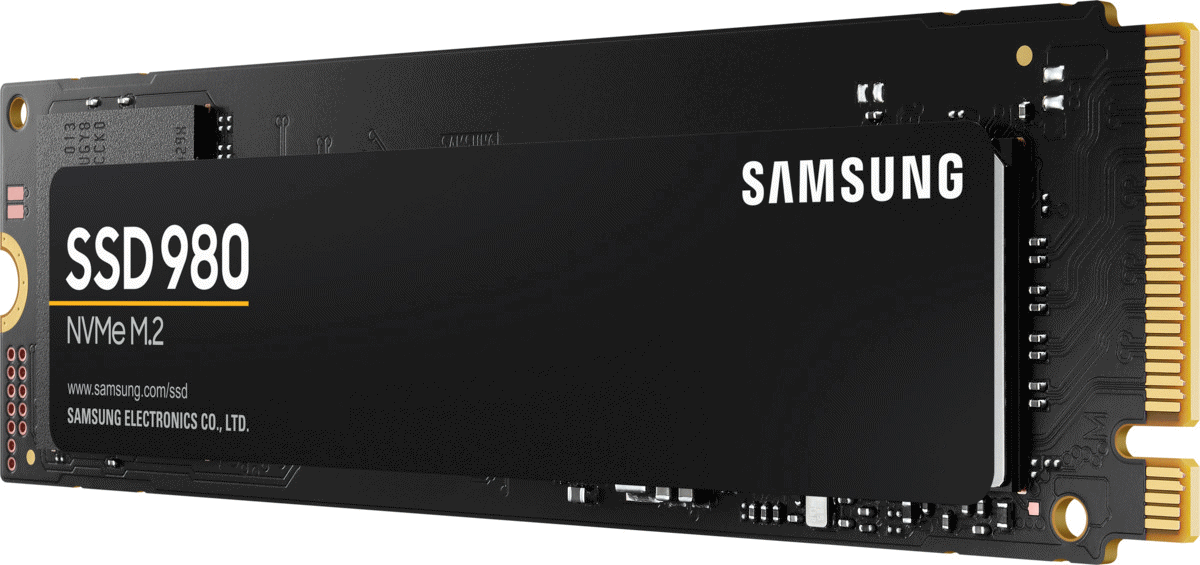

Samsung 500GB M.2 980 PCIe 3.0 NVMe SSD MZ-V8V500BW

Manufacturer: Samsung
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.
SKU: CSS0057
Manufacturer part number: MZ-V8V500BW
GTIN: 8806090572227
Availability: 4 in stock
€195.00 incl VAT
i h


Capacity 500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe Gen 3.0 x4, NVMe 1.4
Dimension (Pack: WxHxD) 80.15 x 22.15 x 2.38 (mm)
Weight Max 8.0 g Weight
Storage Memory Samsung V-NAND 3-bit MLC
Controller Samsung Pablo Controller
Cache Memory HMB(Host Memory Buffer)
TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes
Sequential Read Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
Random Read (4KB, QD32) Up to 400,000 IOPS* Performance may vary based on system hardware & configuration
Random Write (4KB, QD32) Up to 470,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4KB, QD1)Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD1) Up to 54,000 IOPS * Performance may vary based on system hardware & configuration
Average Power Consumption (system level) *Average: 4.3 W*Maximum: 5.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Management SW Magician Software for SSD management
