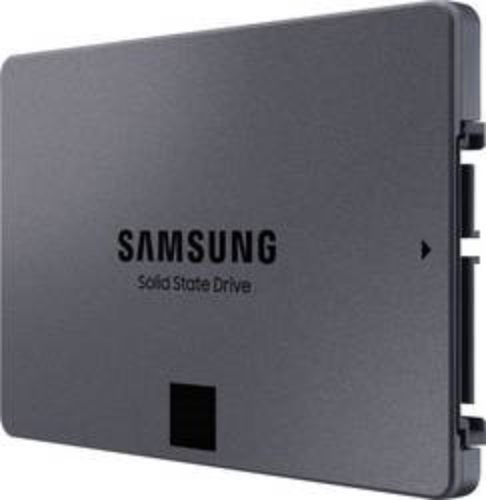

Samsung 2TB 870 QVO SSD

Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)

Weight Apporx. 46.0g Weight

Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Specifications Detail


Capacity
2,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor 2.5 inch

Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (Pack: WxHxD) 100 X 69.85 X 6.8 (mm)

Weight Apporx. 46.0g Weight

Storage Memory Samsung V-NAND 4bit MLC

Controller Samsung MKX Controller

Cache Memory Samsung 2 GB Low Power DDR4 SDRAM

TRIM Support TRIM Supported

S.M.A.R.T Support S.M.A.R.T Supported

GC (Garbage Collection) Auto Garbage Collection Algorithm

Encryption Support AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support World Wide Name supported

Device Sleep Mode Support Yes

Performance Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD32) Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD1)
Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD1) Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
Average Power Consumption (system level)
Average: 3.0 W *Maximum: 5.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage 5V ± 5% Allowable voltage

Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)

Operating Temperature 0 - 70 ℃ Operating Temperature

Shock 1,500 G & 0.5 ms (Half sine)
