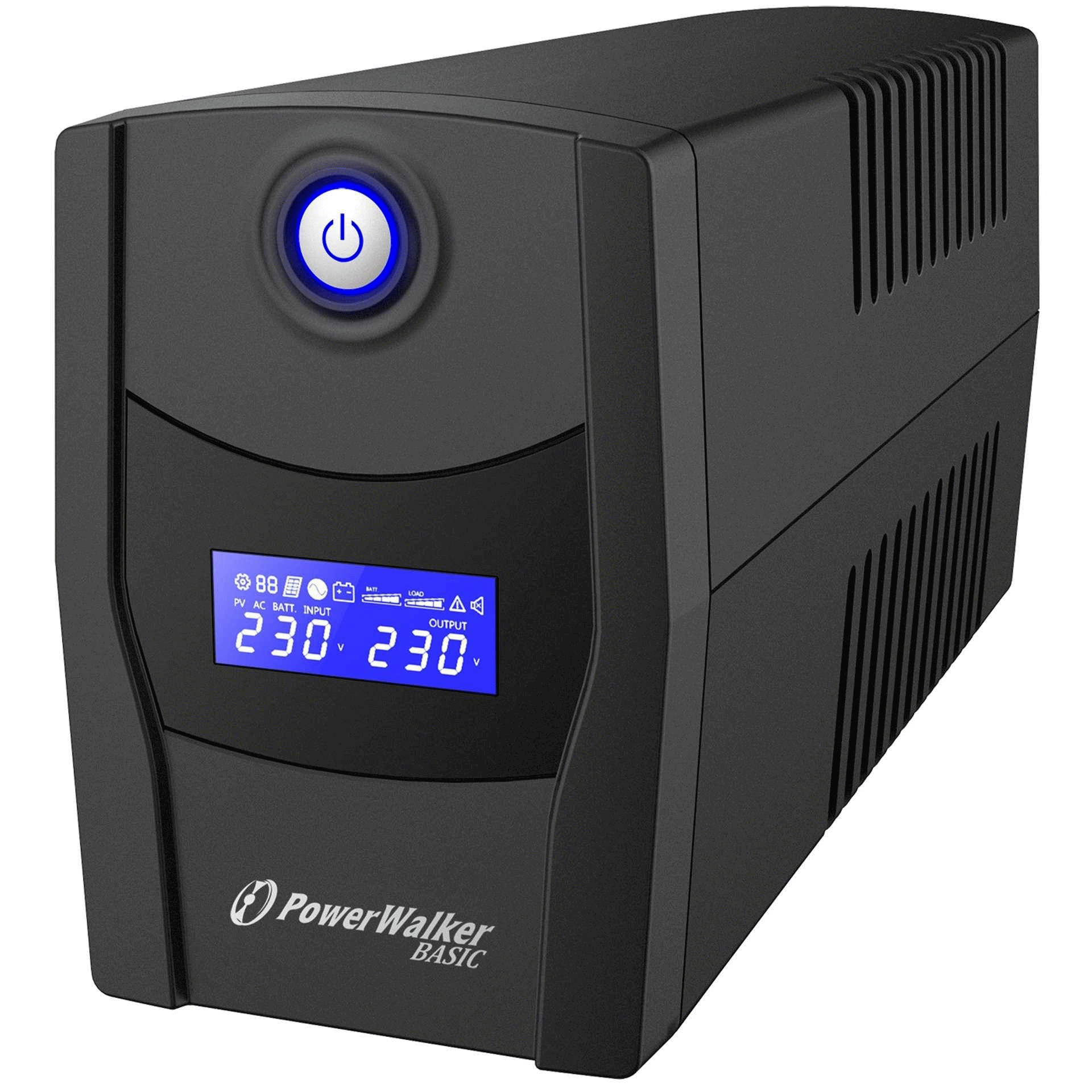

PowerWalker VI 800 STL UK Art. No. 10121085

uman Interface Device (HID) Supported Multi-Purpose button (Single-Click, Double-Click or hold to control different Functions) Equipped with Boost and Buck (AVR) Cold (DC) Start Function Auto-Dimming Screen (UPS is woken up with Single Button-Click) Silent Operation (Zzz Zzz…)

SKU: PUP0039

Availability: 8 in stock

€83.00 incl VAT

Qty:

i h

Type Line-Interactive (VI)
Phases (IN-OUT) 1-1
Form Factor Tower
Power Capacity 800VA / 480W
Output Power Factor 0.60
INPUT
Input Voltage Range 162-290 VAC
Frequency Range 50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform Simulated Sine Wave
Nominal Output Voltage 230 VAC
Frequency (Battery Mode) ±0.05Hz
INPUT & OUTPUT CONNECTORS
Input Connector UK
Output Type Type G
Type G (BS 1363) 3
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 96.7
Transfer Time (AC / Line Mode to Battery Mode) [ms] 4ms
Additional Features HID – Human Interface Device, AVR – Automatic Voltage Regulator, Cold-Start Function
IEC 62040-3 classification VI-SY-333
BATTERIES AND AUTONOMY
Batteries 1x 12.0V/7.2Ah
DC Voltage 1x 12.0V
Recharge Time 8h to 90%
Full Load Backup Time [min] 0.5
Half Load Backup Time [min] 5.0
Charger 0.7A
COMMUNICATION
Communication USB Type B – for Monitoring Software
Software PowerMaster
ENVIRONMENT
Noise Level < 30dB
Fan Logic No fan
Temperature 0°C – 40°C
Humidity 0% – 90% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Manual, UPS
Manual Languages RU, PL, FR, PT, RO, EN, BG
EAN 4260074980806
Product Dimensions (DxWxH) [mm] 286 x 96 x 138 mm
Product Weight [kg] 4.5
Package Dimensions (DxWxH) [mm] 323 x 146 x 202 mm
Package Weight [kg] 5.1
Outer Carton Dimensions (DxWxH) 339 x 603 x 227 mm
Outer Carton Weight [kg] 21.4
Pcs. per Outer Carton 4
Pcs. per Layer 24
Pcs. per Pallet [Oversized] 192
