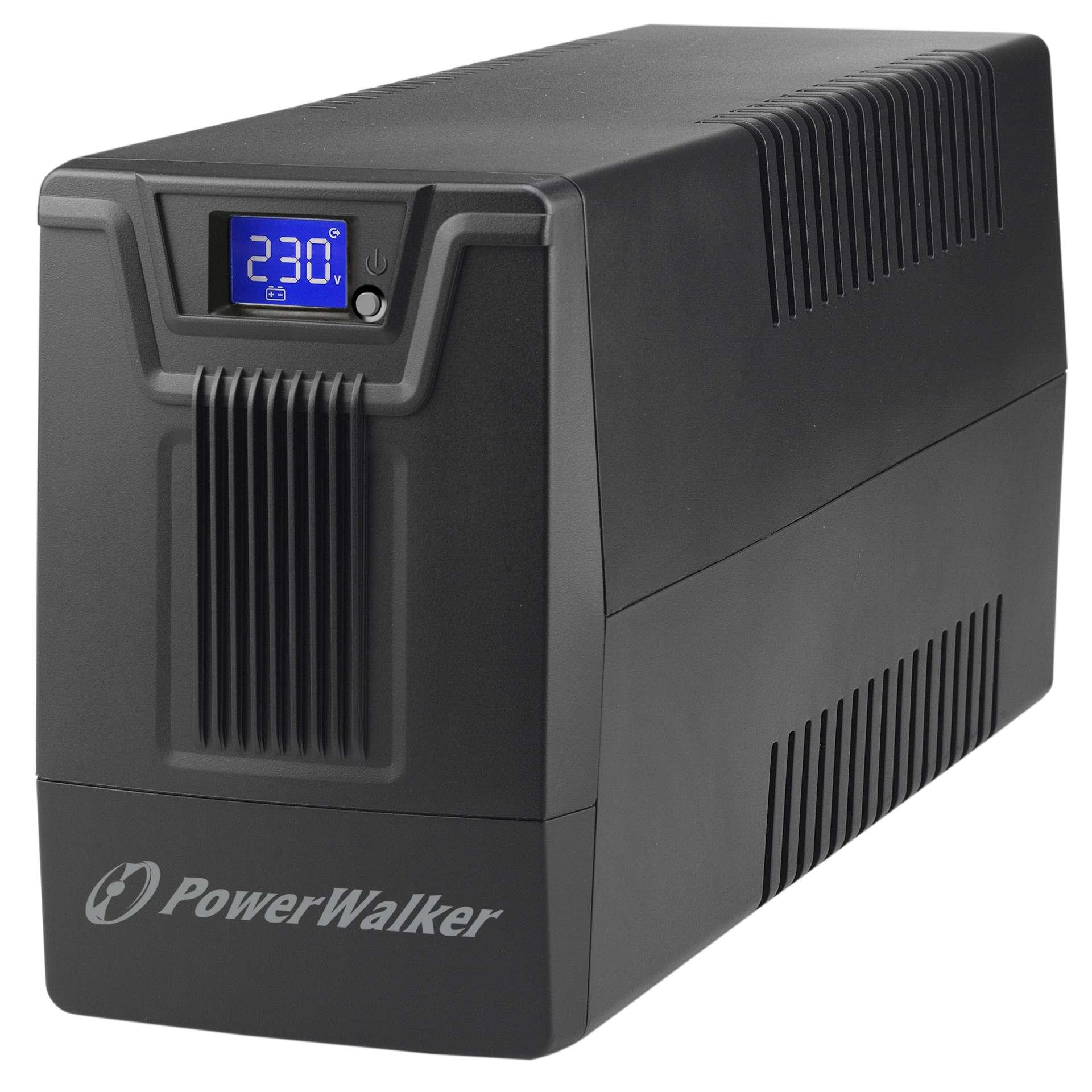

PowerWalker VI 800 SCL UK Art No. 10121154

The PowerWalker VI SCL (Line-Interactive) series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID

SKU: PUP0108

Availability: Out of stock

€77.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	800VA / 480W
Output Power Factor	0.60
INPUT
Input Voltage Range	162-290 VAC
Frequency Range	50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform	Simulated Sine Wave
Nominal Output Voltage	230 VAC
Voltage Regulation (Battery Mode)	±10%
Frequency (Battery Mode)	±1Hz
INPUT & OUTPUT CONNECTORS
Input Connector	UK
Output Type	Type G
Type G (BS 1363)	2
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	94.0
Battery Mode Efficiency [%] (Full Load)	60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	2-6ms
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VI-SY-333
BATTERIES AND AUTONOMY
Batteries	1x 12.0V/9.0Ah
DC Voltage	1x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	0.0
Half Load Backup Time [min]	2.5
Charger	1A
COMMUNICATION
Communication	USB Type B – for Monitoring Software
Software	ViewPower
ENVIRONMENT
Noise Level	< 30dB
Fan Logic	No fan
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Manual, UPS
Manual Languages	DE, IT, RU, PL, FR, ES, PT, EN
EAN	4260074982268
Product Dimensions (DxWxH) [mm]	300 x 101 x 142 mm
Product Weight [kg]	5.0
Package Dimensions (DxWxH) [mm]	344 x 140 x 220 mm
Package Weight [kg]	6.2
Pcs. per Outer Carton	4
