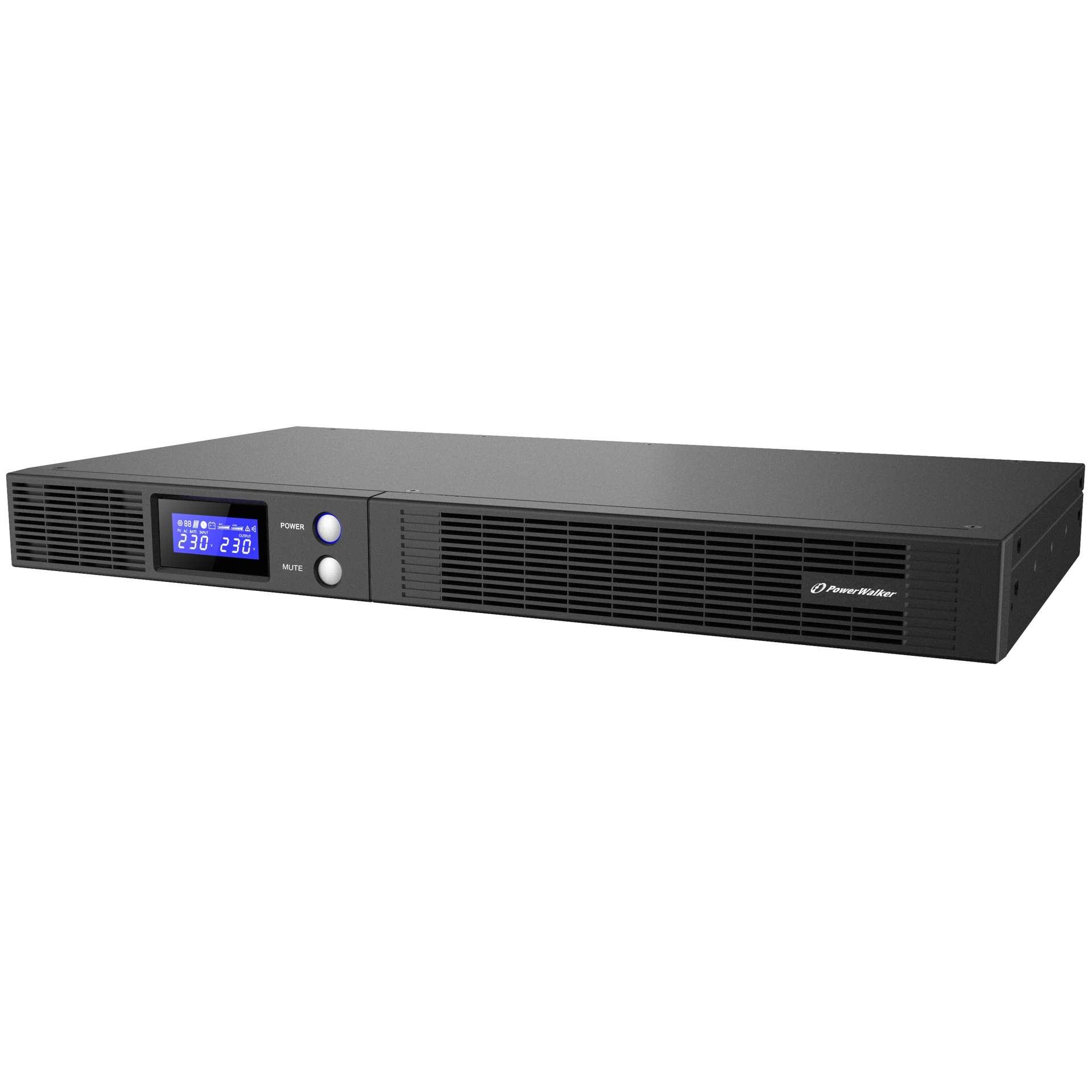

    PowerWalker VI 500 R1U Art no. 10121047

    Manufacturer: Powerwalker
    The PowerWalker VI R1U is a Line-Interactive rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting, and fits perfectly for applications where space is a main concern (they also have very low-depth, only 216 mm for the smaller models). It is equipped with pure sine wave output, and it includes an intelligent card slot for network cards, so that even sensitive and critical loads can be kept safe.
    SKU: PUP0167
    Manufacturer part number: 10121047
    Availability: Out of stock
    €199.00 incl VAT
    i h
    GENERAL FEATURES
    TypeLine-Interactive (VI)
    Phases (IN-OUT)1-1
    Form FactorRack
    Rack Units [U]1U
    Power Capacity500VA / 300W
    Output Power Factor0.60
    INPUT
    Input Voltage Range165-290 VAC
    Frequency Range45Hz – 65Hz
    OUTPUT
    WaveformPure Sine Wave
    Nominal Output Voltage230 VAC
    THDv≤3% @ 100% linear load, ≤5% @ 100% non-linear load
    Voltage Regulation (Battery Mode)±10%
    Frequency (Battery Mode)±0.5Hz
    INPUT & OUTPUT CONNECTORS
    Input ConnectorC14
    Output TypeIEC
    IEC C134
    TECHNICAL DETAILS
    LINE Mode Efficiency [%] (Full Load)95.0
    Battery Mode Efficiency [%] (Full Load)78.0
    Transfer Time (AC / Line Mode to Battery Mode) [ms]4ms typical
    Additional FeaturesLCD Display, HID – Human Interface Device, EPO – Emergency Power Off, AVR – Automatic Voltage Regulator, Low-Depth, Energy Saving Function
    BATTERIES AND AUTONOMY
    Batteries2x 6.0V/7.0Ah
    DC Voltage2x 6.0V
    Recharge Time8h to 90%
    Full Load Backup Time [min]0.8
    Half Load Backup Time [min]10.3
    Charger1A
    COMMUNICATION
    CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
    SoftwarePowerMaster
    ENVIRONMENT
    Noise Level< 30dB
    Fan LogicNo fan
    Temperature0°C – 40°C
    Humidity0% – 90% RH (non-condensing)
    IPIP 20
    LOGISTICS
    Package ContentRack Ears, Input Power Cable, Manual, USB Cable, UPS
    Manual LanguagesEN, UA, DE, PL
    EAN4260074980387
    Product Dimensions (DxWxH) [mm]216 x 433 x 44 mm
    Product Weight [kg]7.6
    Package Dimensions (DxWxH) [mm]317 x 537 x 150 mm
    Package Weight [kg]8.7
    Pcs. per Outer Carton1
