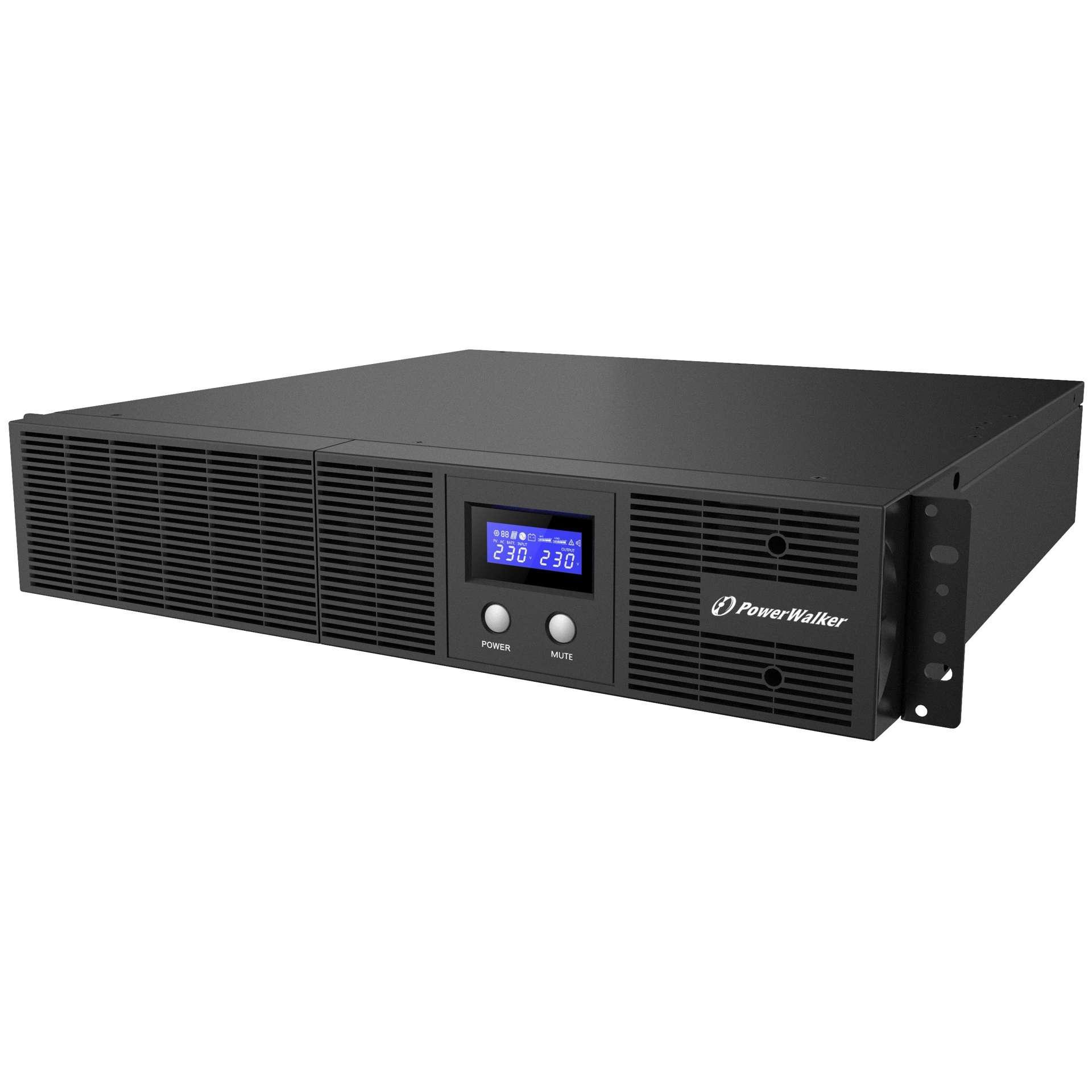

    PowerWalker VI 3000 RLE UK Art No. 10122139

    Manufacturer: Powerwalker
    The PowerWalker VI RLE is a compact 2U Line-Interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software. Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD provides all the necessary information and will auto-dimm after a few seconds. These features make the UPS series an attractive solution for home use as well.
    SKU: PUP0106
    Availability: Out of stock
    €471.00 incl VAT
    i h
    GENERAL FEATURES
    TypeLine-Interactive (VI)
    Phases (IN-OUT)1-1
    Form FactorRack
    Rack Units [U]2U
    Power Capacity3000VA / 1800W
    Output Power Factor0.60
    INPUT
    Input Voltage Range165-290 VAC
    Frequency Range45Hz – 65Hz
    OUTPUT
    WaveformPure Sine Wave
    Nominal Output Voltage230 VAC
    THDv≤3% @ 100% linear load, ≤5% @ 100% non-linear load
    Voltage Regulation (Battery Mode)±10%
    Frequency (Battery Mode)±0.5Hz
    INPUT & OUTPUT CONNECTORS
    Input ConnectorC20-UK
    Output TypeIEC – UK
    IEC C138
    TECHNICAL DETAILS
    LINE Mode Efficiency [%] (Full Load)98.0
    Battery Mode Efficiency [%] (Full Load)80.0
    Transfer Time (AC / Line Mode to Battery Mode) [ms]4ms typical
    Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
    Additional FeaturesLCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Energy Saving Function
    BATTERIES AND AUTONOMY
    Batteries4x 12.0V/7.2Ah
    DC Voltage4x 12.0V
    Recharge Time4h to 90%
    Full Load Backup Time [min]1.3
    Half Load Backup Time [min]7.4
    Charger2A
    COMMUNICATION
    CommunicationUSB Type B – for Monitoring Software, RS-232, Management Card Slot
    SoftwarePowerMaster
    ENVIRONMENT
    Noise Level< 50dB
    Fan LogicFan Off: Line Mode



    Fan On: Battery Mode, AVR ON, Battery Charging

    Temperature0°C – 40°C
    Humidity0% – 90% RH (non-condensing)
    IPIP 20
    LOGISTICS
    Package ContentRack Ears, Input Power Cable, Manual, USB Cable, IEC Cable, UPS
    Manual LanguagesDE, PL, EN
    EAN4260074981230
    Product Dimensions (DxWxH) [mm]430 x 438 x 88 mm
    Product Weight [kg]21.8
    Package Dimensions (DxWxH) [mm]231 x 556 x 550 mm
    Package Weight [kg]23.6
    Pcs. per Outer Carton1
