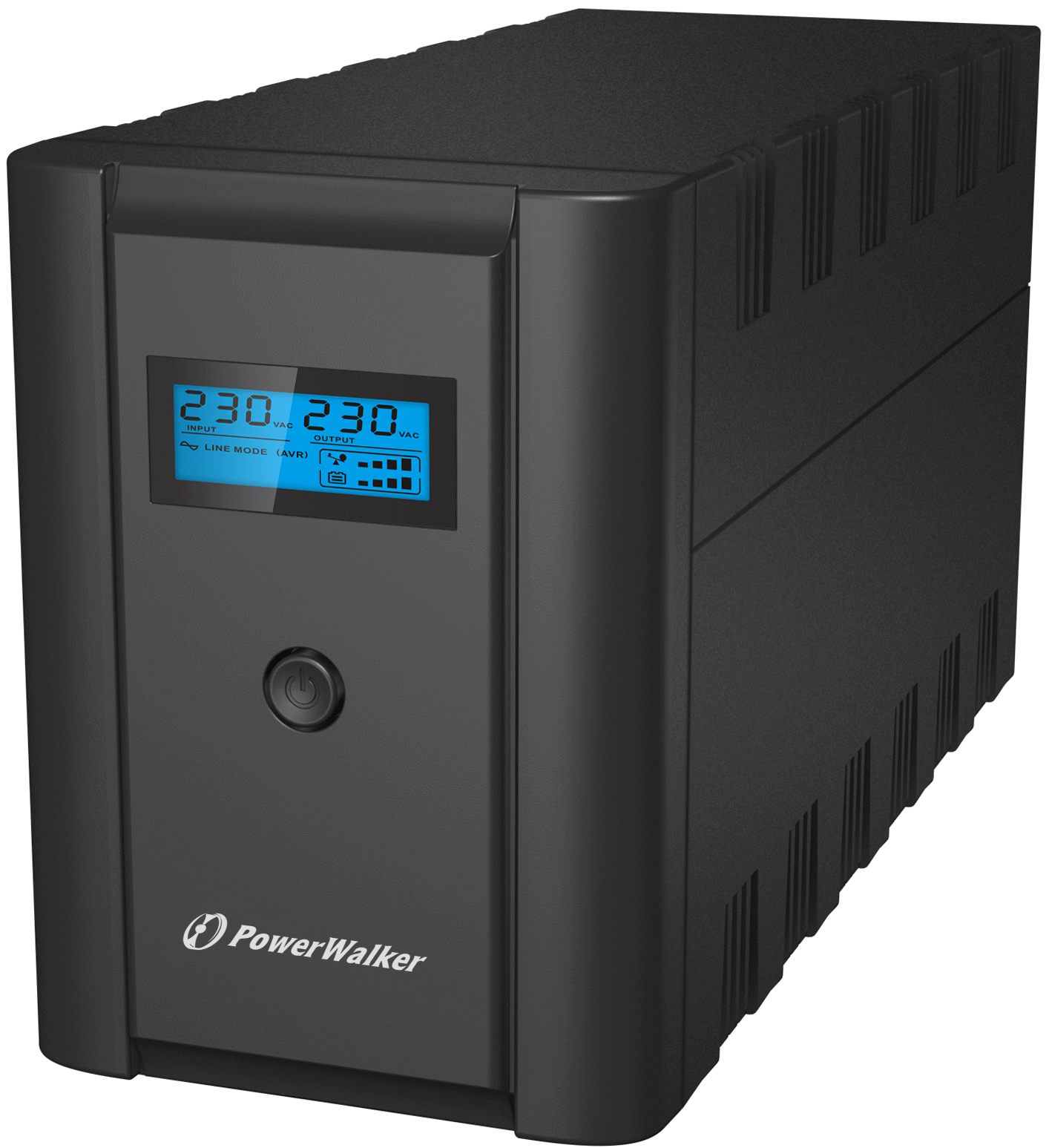

PowerWalker VI 2200 SHL IEC/UK Art No. 10121013

The PowerWalker VI SH / SHL provide a comprehensive protection and a high-power density in a small and economic package for a Line-Interactive UPS. It is equipped with a voltage stabilizer; this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application. These series is equipped with a stronger charger that reaches 90% of the battery capacity in 2-4h. With a Human Interface Device (HID) support for USB communication it allows quick and easy setup with any operating system. In addition, this UPS provides RJ-11 surge protection. Highlight of the PowerWalker VI SHL unit is the integrated LCD. Which lets you follow the usual UPS detailed information without the need of a second device to monitor the UPS.

SKU: PUP0027

Manufacturer part number: 10121013

Availability: 14 in stock

€203.00 incl VAT

Qty:

i h

General features
Type Line-Interactive
Power capacity 2200VA / 1200W
Output Power Factor 0.55
Input
Input Voltage Range 170-280 VAC ±7%
Frequency (Synchronized Range) 50Hz or 60Hz
Output
Nominal Output Voltage 230 VAC
Voltage Regulation (Bat. Mod.) ±10%
Frequency (Battery Mode) ±1Hz
Technical details
Transfer Time [AC to Battery] 4-8ms
Overload Capacity N/A
Charger 1.2A
Protection Discharge prevention; Deep discharger; Overcharge; Overload
Fan Logic Auto: OFF: in LINE mode and if internal voltage >=13.4Vdc and load <50%; ON: in battery mode, AVR mode and in LINE mode if load is >50%
LCD Indicators AVR mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm
Efficiency
LINE mode full Load 95.0%
Batteries and autonomy time
Batteries 2x 12V/9Ah
DC Voltage 2 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 0.5min
Half Load Backup Time 5min
Connections and communication
IEC C13 Outlet 6
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RJ-45/RJ-11 protection Yes
Environment
Noise Level < 45dB
Temperature 0°C – 40°C
Humidity 0% - 90% RH (non-condensing)
Logistics
Package Content UPS, Manual, USB Cable, Input Power Cable, IEC Cable
Manual Languages EN/DE/FR/PL/SE/FI/DK/NO
EAN 4260074976700
Width 139 mm
Height 195 mm
Depth 364 mm
Weight 10.2 kg
Giftbox - Width 230 mm
Giftbox - Height 292 mm
Giftbox - Depth 452 mm
Giftbox - Weight 10.4 kg
Pcs. per box 1
