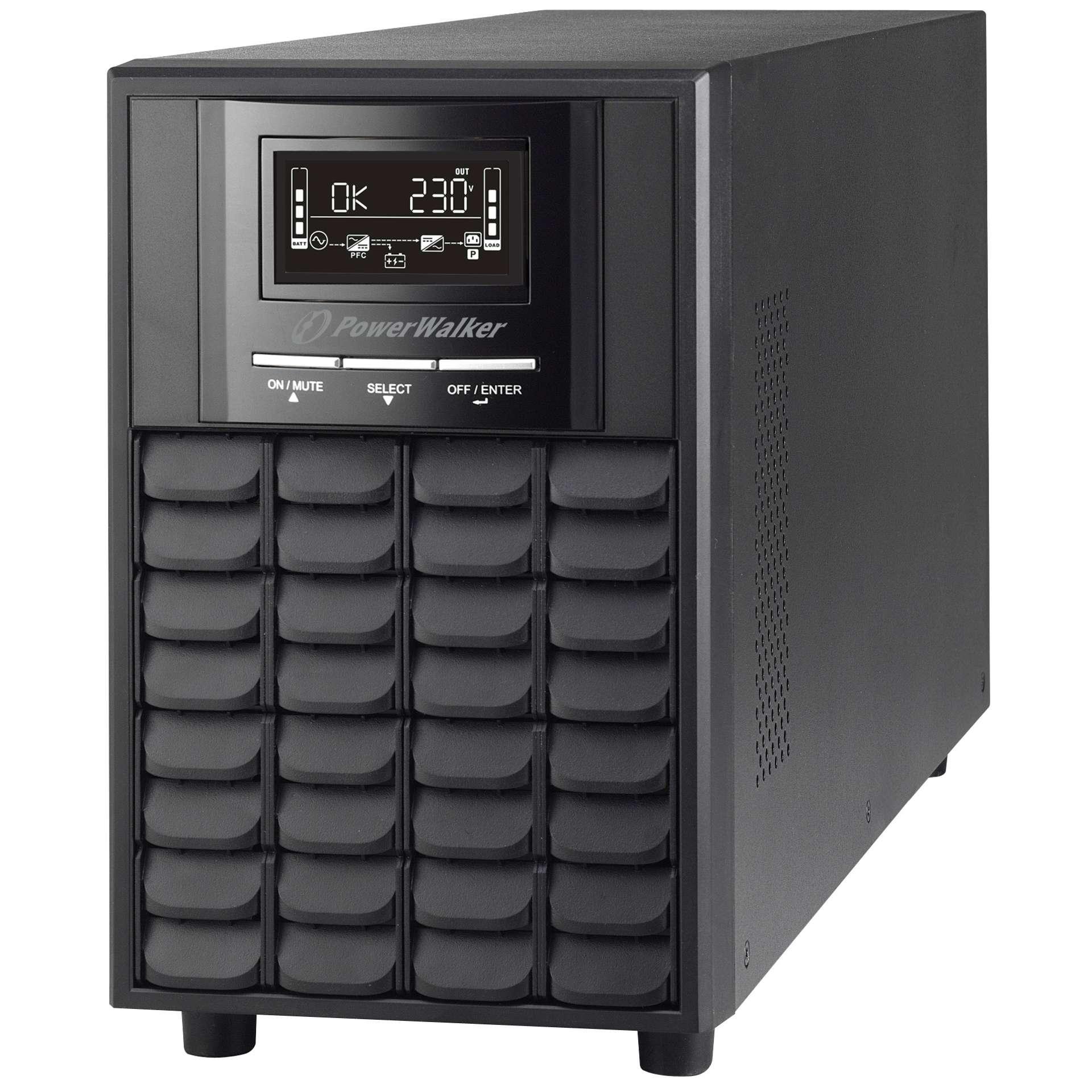

    PowerWalker VI 2000 CW IEC UK Art No. 10121108

    Manufacturer: Powerwalker
    The PowerWalker VI CW is an advanced Line-Interactive UPS series with pure sine wave output. Combined with the AVR function for voltage stabilization, this UPS series will provide clean and stable power to the connected equipment. While designed for home and office use, this UPS will also safeguard more sensitive IT and network devices, as well as high-end PC systems. The programmable segment and comprehensive LCD present a high degree of functionality and flexibility that are rarely found in other line-interactive solutions. Additionally this series offers a variety of communication options, such as USB communication with software or without software (HID), or even communication via an optional network card (SMNP).
    SKU: PUP0121
    Manufacturer part number: 10121108
    Availability: Out of stock
    €448.00 incl VAT
    i h
    GENERAL FEATURES
    TypeLine-Interactive (VI)
    Phases (IN-OUT)1-1
    Form FactorTower
    Power Capacity2000VA / 1400W
    Output Power Factor0.70
    INPUT
    Input Voltage Range162-290 VAC
    Frequency Range45Hz – 65Hz (self-adaptive to 50/60Hz)
    OUTPUT
    WaveformPure Sine Wave
    Nominal Output Voltage208/220/230/240 VAC
    THDv≤2% @ 100% linear load, ≤5% @ 100% non-linear load
    Voltage Regulation (Battery Mode)±1.5% (before battery alarm)
    Frequency (Battery Mode)±1Hz
    INPUT & OUTPUT CONNECTORS
    Input ConnectorC20
    Output TypeIEC
    IEC C138
    TECHNICAL DETAILS
    LINE Mode Efficiency [%] (Full Load)96.0
    Battery Mode Efficiency [%] (Full Load)90.0
    Transfer Time (AC / Line Mode to Battery Mode) [ms]2-6ms typical (10ms max)
    Load Crest Ratio3:1
    Additional FeaturesPotential Equalization Screw, LCD Display, Battery Pack Available, EPO – Emergency Power Off, Programmable Segment Available, HID – Human Interface Device, ECO Mode Available, AVR – Automatic Voltage Regulator
    IEC 62040-3 classificationVI-SS-311
    BATTERIES AND AUTONOMY
    Batteries4x 12.0V/7.0Ah
    DC Voltage4x 12.0V
    Recharge Time4h to 90%
    Full Load Backup Time [min]2.5
    Half Load Backup Time [min]8.0
    Charger1.4A
    External Battery PackYes
    COMMUNICATION
    CommunicationRS-232, Management Card Slot, USB Type B – for Monitoring Software
    SoftwareViewPower
    ENVIRONMENT
    Noise Level< 45dB
    Fan LogicControlled by adjusting fan speed in 5% steps. Fan off under 40°C ; line mode; batteries charged
    Temperature0°C – 40°C
    Humidity20% – 90% RH (non-condensing)
    IPIP 20
    LOGISTICS
    Package ContentInput Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
    Manual LanguagesEN
    EAN4260074981612
    Product Dimensions (DxWxH) [mm]455 x 145 x 220 mm
    Product Weight [kg]18.1
    Package Dimensions (DxWxH) [mm]540 x 235 x 325 mm
    Package Weight [kg]20.1
    Pcs. per Outer Carton1
