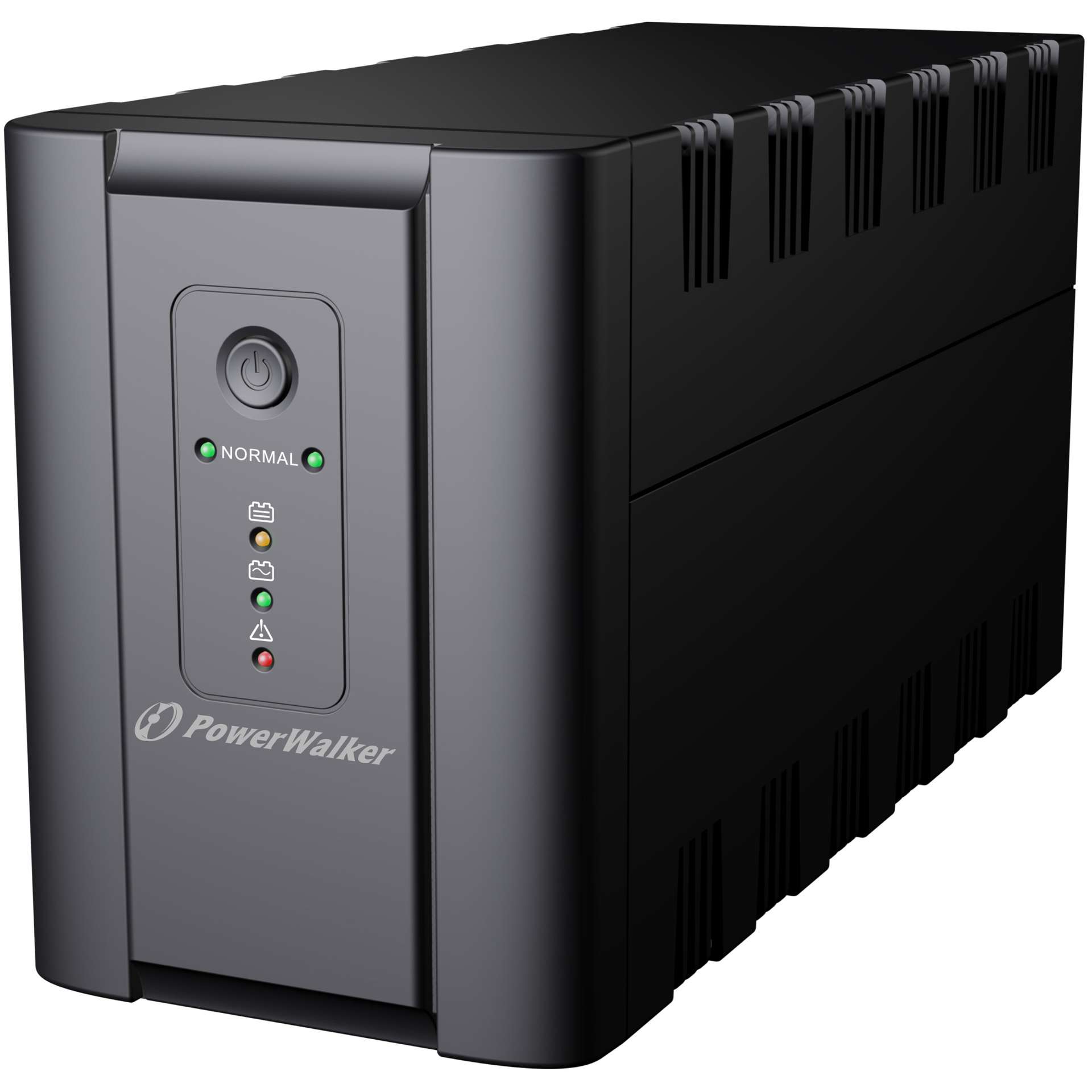

PowerWalker VI 1200 SH IEC/UK Art No. 10120059

PowerWalker VI 1200 IEC/UK is a Line- Interactive UPS which provides high performance and reliable and cost-effective backup power protection. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ11/RJ45 surge protection, and green power function for energy saving. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or SMB (small medium business) application.

SKU: PUP0012

Availability: 3 in stock

€154.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Line-Interactive (VI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	1200VA / 600W
Output Power Factor	0.50
INPUT
Input Voltage Range	170-280 VAC ±7%
Frequency Range	50Hz or 60Hz (self-adaptive)
OUTPUT
Waveform	Simulated Sine Wave
Nominal Output Voltage	230 VAC
Voltage Regulation (Battery Mode)	±10%
Frequency (Battery Mode)	±1Hz
INPUT & OUTPUT CONNECTORS
Input Connector	C14-UK
Output Type	IEC – UK
IEC C13	6
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	95.0
Battery Mode Efficiency [%] (Full Load)	60.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	4-8ms
Data Line Protection	RJ-11 Port, RJ-45 Port (100mbit)
Additional Features	Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VI-SY-333
BATTERIES AND AUTONOMY
Batteries	2x 12.0V/7.0Ah
DC Voltage	2x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	1.3
Half Load Backup Time [min]	11.0
Charger	1.2A
COMMUNICATION
Communication	USB Type B – for Monitoring Software
Software	WinPower
ENVIRONMENT
Noise Level	< 30dB
Fan Logic	No fan
Temperature	0°C – 40°C
Humidity	0% – 90% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Input Power Cable, Manual, USB Cable, IEC Cable, UPS
Manual Languages	DE, SE, DK, FI, NO, RU, PL, FR, PT, CZ, EN
EAN	4260074975468
Product Dimensions (DxWxH) [mm]	364 x 139 x 195 mm
