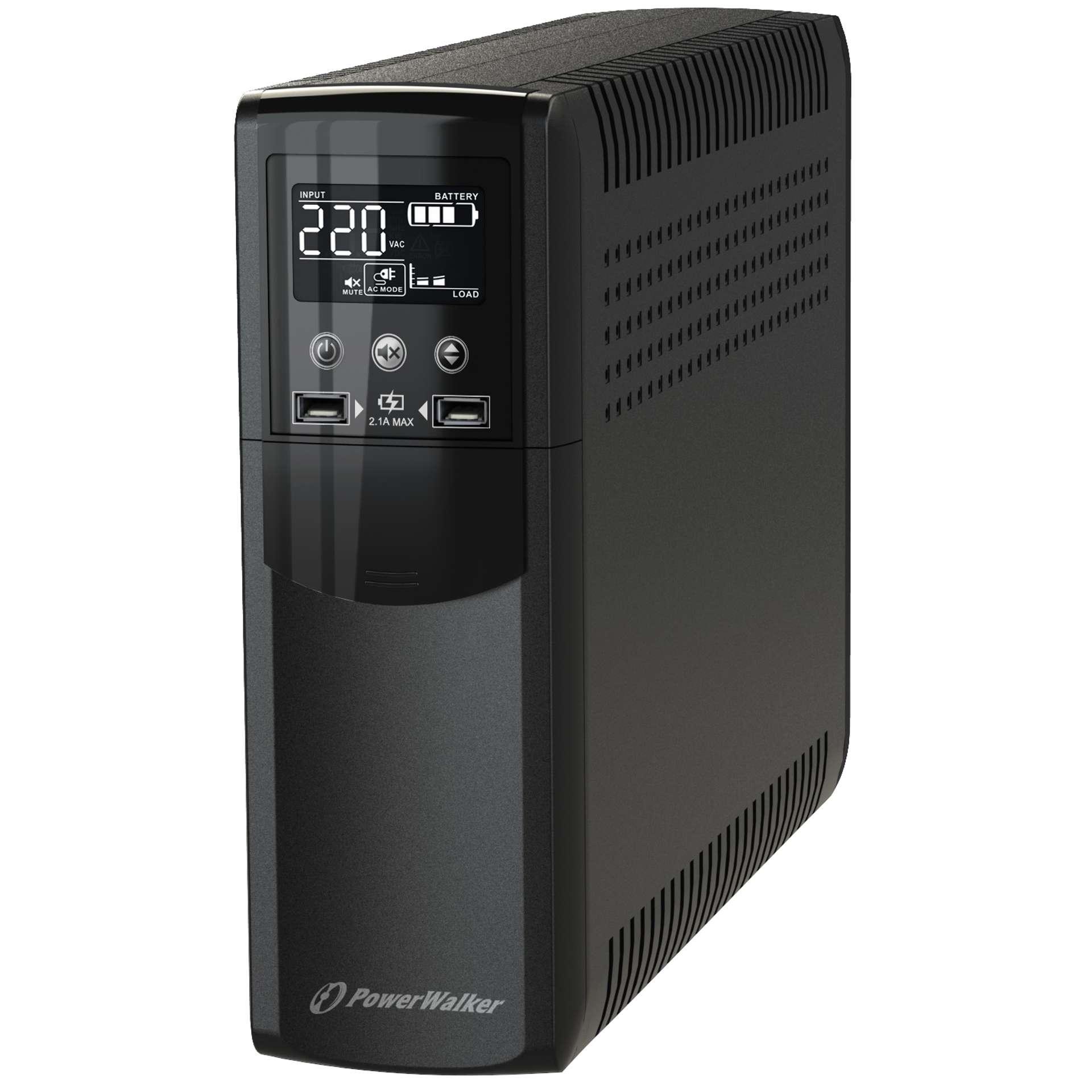

    PowerWalker VI 1200 CSW IEC/UK Art No. 10121128

    Manufacturer: Powerwalker
    The PowerWalker VI CSW is a Line-Interactive UPS series with state-of-the-art technology and design. The integrated AVR function and pure sinewave output ensures clean and stable output during power outages or voltage fluctuations. The modern and elegant design makes the VI CSW series especially suitable for home and office use. Applications include (but are not limited to) gaming and entertainment systems, office workstations, NAS etc. Two USB charging ports (2.1A) in the front offer additional functionality and convenience. Furthermore, the design allows easy access to the battery compartment via the front panel for easy battery replacement.
    SKU: PUP0117
    Availability: Out of stock
    €239.00 incl VAT
    i h
    GENERAL FEATURES
    TypeLine-Interactive (VI)
    Phases (IN-OUT)1-1
    Form FactorTower
    Power Capacity1200VA / 720W
    Output Power Factor0.60
    INPUT
    Input Voltage Range162-290 VAC
    Frequency Range45Hz – 65Hz (self-adaptive to 50/60Hz)
    OUTPUT
    WaveformPure Sine Wave
    Nominal Output Voltage230 VAC
    Voltage Regulation (Battery Mode)±10%
    Frequency (Battery Mode)±1Hz
    INPUT & OUTPUT CONNECTORS
    Input ConnectorC14-UK
    Output TypeIEC – UK
    IEC C134
    IEC C13 Surge Only4
    TECHNICAL DETAILS
    LINE Mode Efficiency [%] (Full Load)98.4
    Battery Mode Efficiency [%] (Full Load)82.0
    Transfer Time (AC / Line Mode to Battery Mode) [ms]6ms typical (10ms max)
    Data Line ProtectionRJ-11 Port, RJ-45 Port (100mbit)
    Additional FeaturesUSB Type A – Charger, Hot-Swappable Batteries, LCD Display, Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
    IEC 62040-3 classificationVI-SX-333
    BATTERIES AND AUTONOMY
    Batteries2x 12.0V/7.0Ah
    DC Voltage2x 12.0V
    Recharge Time4-6h to 90%
    Full Load Backup Time [min]2.5
    Half Load Backup Time [min]9.0
    Charger1A
    COMMUNICATION
    CommunicationUSB Type B – for Monitoring Software
    SoftwareViewPower
    ENVIRONMENT
    Noise Level< 45dB
    Fan LogicAuto: OFF: in LINE mode; ON: in battery- and AVR mode
    Temperature0°C – 40°C
    Humidity0% – 90% RH (non-condensing)
    IPIP 20
    LOGISTICS
    Package ContentInput Power Cable, Manual, USB Cable, IEC Cable, UPS
    EAN4260074981940
    Product Dimensions (DxWxH) [mm]410 x 99 x 280 mm
    Product Weight [kg]11.3
    Package Dimensions (DxWxH) [mm]500 x 188 x 387 mm
    Package Weight [kg]11.8
    Pcs. per Outer Carton1
