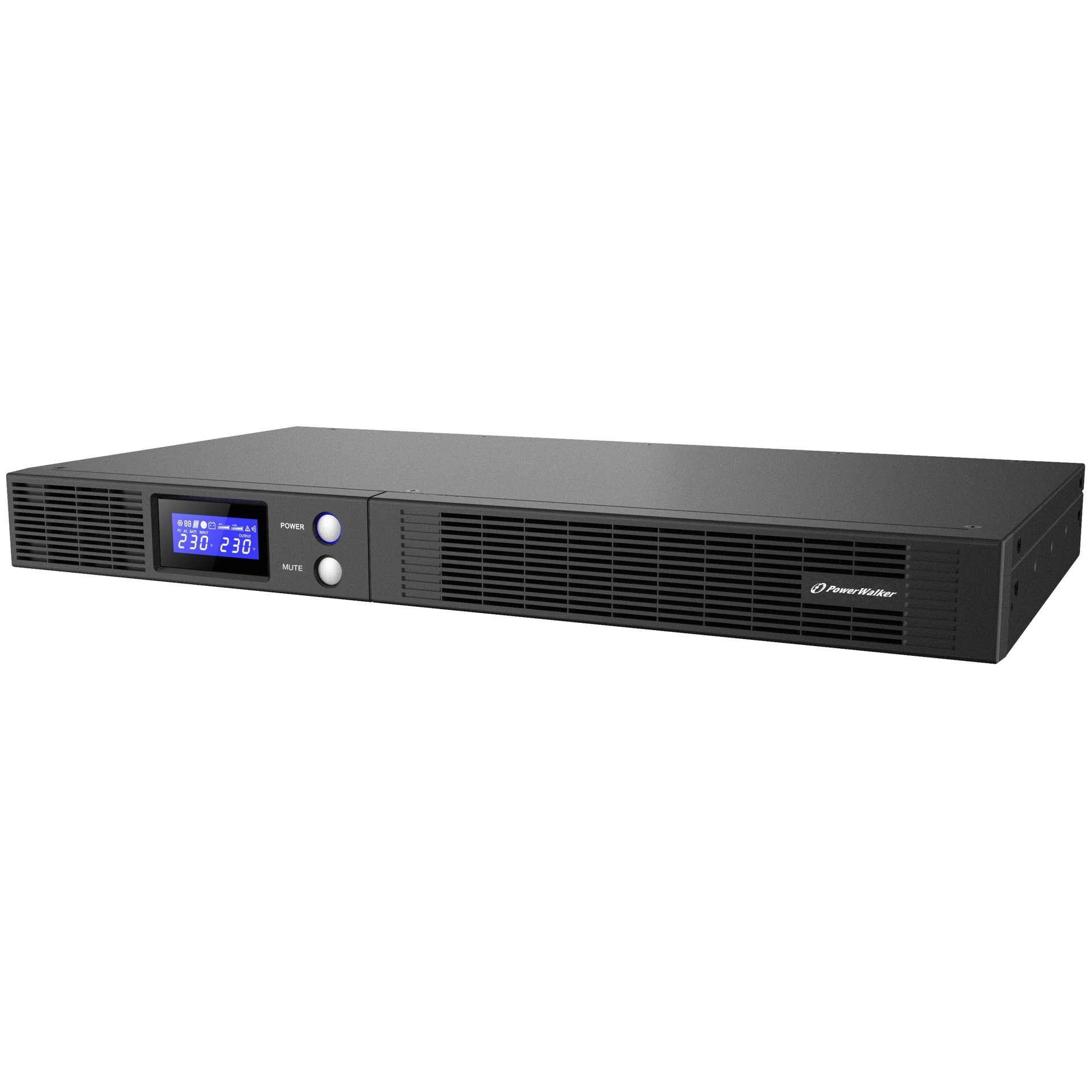

PowerWalker VI 1000 R1U IEC/UK Art. No. 10120703

The PowerWalker VI R1U is a Line-Interactive rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting, and fits perfectly for applications where space is a main concern (they also have very low-depth, only 216 mm for the smaller models). It is equipped with pure sine wave output, and it includes an intelligent card slot for network cards, so that even sensitive and critical loads can be kept safe. Considering that the fac is completely switched off in normal operation and the LCD dims out automatically, neither noise nor LCD lighting will disturb you. The PowerWalker VI R1U is a flexible all-rounder for home and semi-professional environments

SKU: PUP0102

Manufacturer part number: 10120703

Availability: 1 in stock

€379.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type Line-Interactive (VI)
Phases (IN-OUT) 1-1
Form Factor Rack
Rack Units [U] 1U
Power Capacity 1000VA / 600W
Output Power Factor 0.60
INPUT
Input Voltage Range 165-290 VAC
Frequency Range 45Hz – 65Hz
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 230 VAC
THDv ≤3% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±10%
Frequency (Battery Mode) ±0.5Hz
INPUT & OUTPUT CONNECTORS
Input Connector C14-UK
Output Type IEC – UK
IEC C13 4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 95.0
Battery Mode Efficiency [%] (Full Load) 80.0
Transfer Time (AC / Line Mode to Battery Mode) [ms] 4ms typical
Additional Features LCD Display, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
BATTERIES AND AUTONOMY
Batteries 4x 6.0V/7.0Ah
DC Voltage 4x 6.0V
Recharge Time 8h to 90%
Full Load Backup Time [min] 0.8
Half Load Backup Time [min] 10.3
Charger 1A
COMMUNICATION
Communication USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software PowerMaster
ENVIRONMENT
Noise Level < 30dB
Fan Logic No fan
Temperature 0°C – 40°C
Humidity 0% – 90% RH (non-condensing)
IP IP 20
LOGISTICS
Package Content Rack Ears, Input Power Cable, Manual, USB Cable, UPS
Manual Languages EN, UA, DE, PL
EAN 4260074981032
Product Dimensions (DxWxH) [mm] 485 x 433 x 44 mm
Product Weight [kg] 14.2
Package Dimensions (DxWxH) [mm] 475 x 553 x 150 mm
Package Weight [kg] 16.5
