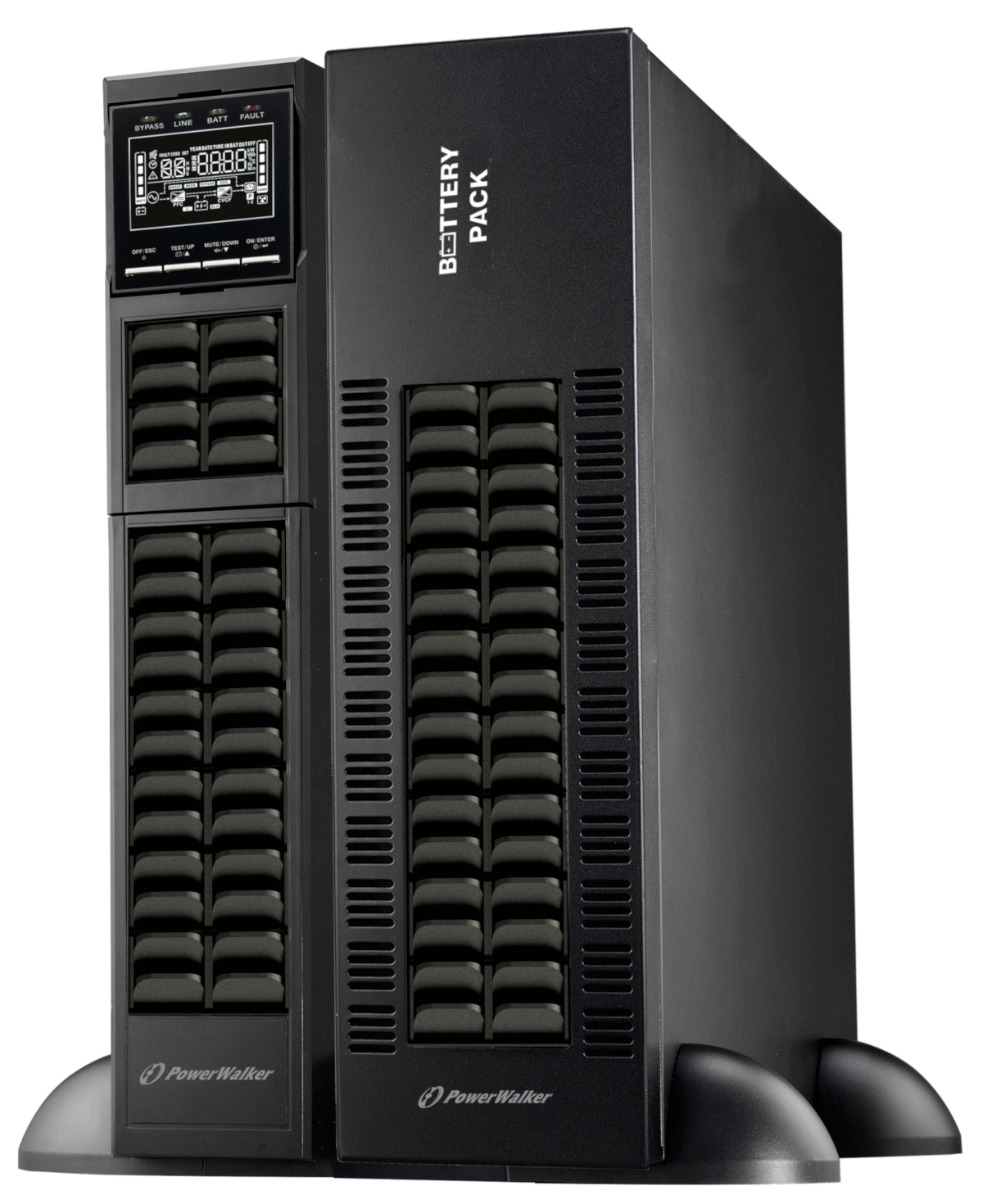

    PowerWalker VFI 6000 RMG PF1 Art No. 10122178

    Manufacturer: Powerwalker
    The PowerWalker VFI 6k-10k RMG PF1 (Online) is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and a strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U of valuable space of your rack system. The UPS can be installed in a 19” rack systems or used as tower. The UPS is available in 2 different Variations: RMG: Complete Solution 5U including a battery pack (3U) RMGS: ONLY the UPS engine without battery pack
    SKU: PUP0140
    Manufacturer part number: 10122178
    Availability: Out of stock
    €1904.00 incl VAT
    i h

    General features
    Type Online
    Power capacity 6000VA / 6000W
    Output Power Factor 1.00
    Input
    Input Voltage Range 110-300 VAC @ 0-60% load
    140-300 VAC @ 60-80% load
    176-300 VAC @ 80-100% load
    Max THDi ≤4% @ 100% load; ≤6% @ 50% load
    Input PF >0.99 @ full load
    Frequency Range 46Hz - 54Hz or 56Hz - 64Hz
    Frequency (Synchronized Range) 46Hz - 54Hz or 56Hz - 64Hz
    Output
    Nominal Output Voltage 208/220/230/240 VAC
    Pure Sine Wave Yes
    THDv ≤1.5% Full Linear Load; ≤7% Non-Linear Load
    Voltage Regulation (Bat. Mod.) ±1%
    Frequency (Battery Mode) ±0,1Hz
    Technical details
    Load Crest Ratio 3:1
    Transfer Time [AC to Battery] 0ms
    Transfer Time [Inverter to Bypass] 0ms
    Generator support Yes
    Overload Capacity Line: 10min @100%-110%; 1min @110%-130%; 1s @>130%; BAT: 30s @100%-110%; 10s @110%-130%; 1s @>130%
    External Battery Connection Yes
    Charger 1-6A [2A]
    Fan Logic Always on, automatic speed control
    Efficiency
    LINE mode full Load 94.0%
    BATTERY mode full Load 91.0%
    Batteries and autonomy time
    Batteries 20x 12V/9Ah
    DC Voltage 20 x 12V
    Recharge Time 9h to 90%
    Full Load Backup Time 6.5min
    Half Load Backup Time 17min
    Connections and communication
    Terminal Output 1
    Input Terminal
    Software ViewPower
    USB port Yes
    RS-232 Port Yes
    Extension Slot Yes, 1
    EPO Port Yes
    Environment
    Noise Level < 55dB
    Temperature 0°C – 40°C
    Humidity 20% - 95% RH (non-condensing)
    Logistics
    IEC 62040-3 classification VFI-SS-111
    Package Content UPS, Manual, USB Cable, Tower Holder
    Manual Languages EN
    EAN 4260074981988
    Width 438 mm
    Height 88 (UPS) 133 (BP) mm
    Depth 600 (UPS) / 580 (BP) mm
    Weight 17,7 (UPS) / 71,3 (BP) kg
    Giftbox - Weight 19.0 (UPS) / 74,8 (BP) kg
    Pcs. per box 1
