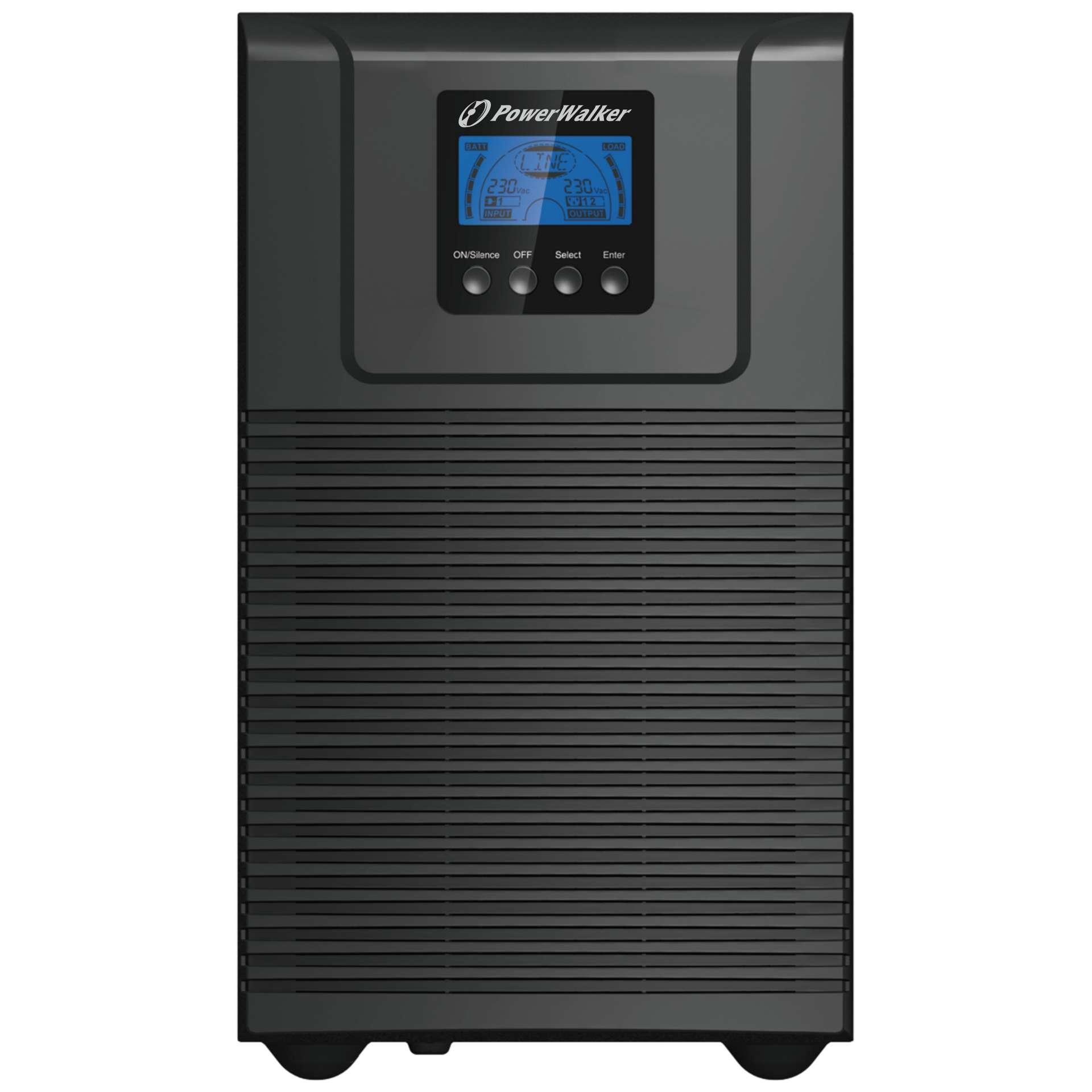

PowerWalker VFI 3000 TG UK Art No.10122103

The PowerWalker VFI TG/TGB/TGS is a professional and versatile Online UPS solution for almost all single-phase applications (suitable for security systems for kiosks, ATMs and as well as high-level security systems, where additional software is not allowed (i.e. banking). The UPS is available in 3 different Variations: TG: ONLY with internal batteries for regular backup times TGB: with internal batteries and connection for external battery packs for extended autonomy times TGS: without internal batteries, but with a stronger Charger for external battery packs and big capacity batteries (non-series batteries)

SKU: PUP0133

Availability: 2 in stock

€564.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Online Single Phase (VFI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	3000VA / 2700W
Output Power Factor	0.90
INPUT
Input Voltage Range	176-300 VAC or 80-285 VAC in Bypass Mode
Max THDi	≤5%
Frequency Range	40Hz – 70Hz
Frequency (Synchronized Range)	45Hz – 55Hz or 54Hz – 66Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
THDv	≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode)	±2%
Frequency (Battery Mode)	±0.05Hz
INPUT & OUTPUT CONNECTORS
Input Connector	C20-UK
Output Type	IEC – UK
IEC C13	4
IEC C19	1
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	90.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	4ms
Load Crest Ratio	3:1
Additional Features	ECO Mode Available, CVCF Mode Available, LCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VFI-SS-111
BATTERIES AND AUTONOMY
Batteries	6x 12.0V/9.0Ah
DC Voltage	6x 12.0V
Recharge Time	4h to 90%
Full Load Backup Time [min]	3.9
Half Load Backup Time [min]	11.7
Charger	1.5A
COMMUNICATION
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	WinPower
ENVIRONMENT
Noise Level	< 50dB
Fan Logic	Always on, Automatic Speed Control
Temperature	0°C – 40°C
Humidity	0% – 95% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
Manual Languages	DE, PL, EN
EAN	4260074979381
Product Dimensions (DxWxH) [mm]	399 x 190 x 328 mm
Product Weight [kg]	22.2
Package Dimensions (DxWxH) [mm]	500 x 324 x 464 mm
Package Weight [kg]	24.6
Pcs. per Outer Carton	1
