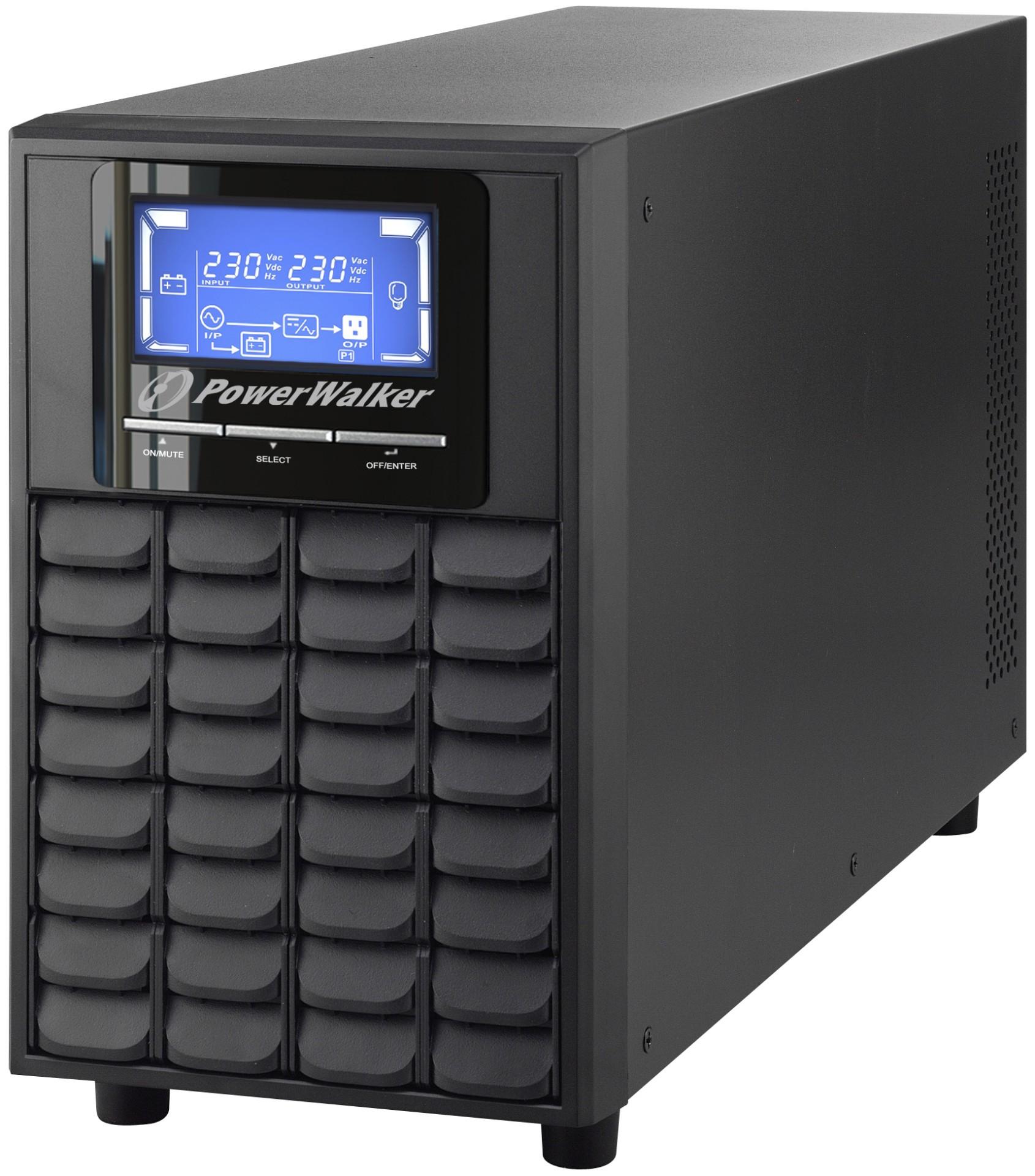

    PowerWalker VFI 2000C LCD/UK Art No. 10120190

    Manufacturer: Powerwalker
    With true double-conversion online UPS design, PowerWalker VFI 1000-3000 C LCD provides powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications.
    SKU: PUP0049
    Availability: Out of stock
    €574.00 incl VAT
    i h
    General features
    TypeOnline
    Power capacity2000VA / 1600W
    Output Power Factor0.80
    Input
    Input Voltage RangeVoltage Range Low Line Transfer
    110-160VAC ± 5% depending on load level
    Voltage Range Low Line Comeback
    125-175VAC ± 5% depending on load level
    Voltage Range High Line Transfer
    300VAC ± 5%
    Voltage Range High Line Comeback
    290VAC ± 5VAC
    Input PF≥ 0.99 at full load
    Frequency Range40Hz - 70Hz
    Frequency (Synchronized Range)47Hz - 53Hz or 57Hz - 63Hz
    Output
    Nominal Output Voltage200/208/220/230/240 VAC
    Pure Sine WaveYes
    THDv≤3% Full Linear Load; ≤6% Non-Linear Load
    Voltage Regulation (Bat. Mod.)±1%
    Frequency (Battery Mode)±0,3Hz
    Technical details
    Load Crest Ratio3:1
    Transfer Time [AC to Battery]0ms
    Transfer Time [Inverter to Bypass]4ms
    Generator supportYes
    Overload CapacityLine: Bypass @>105%; BAT: 10min @105%-110%; 1min @110%-130%; 3s @>130%
    External Battery ConnectionYes
    Charger1A
    Fan LogicAlways on, automatic speed control
    LCD IndicatorsUPS status, Load level, Battery level, Input/Output voltage, AC mode, battery mode, Bypass mode, fault conditions
    Efficiency
    LINE mode full Load89.0%
    BATTERY mode full Load87.0%
    Batteries and autonomy time
    Batteries4x 12V/9Ah
    DC Voltage4 x 12V
    Recharge Time9h to 90%
    Full Load Backup Time4min
    Half Load Backup Time11.5min
    Connections and communication
    IEC C13 Outlet4
    InputC14-UK
    SoftwareViewPower
    USB portYes
    RS-232 PortYes
    Extension SlotYes, 1
    Environment
    Noise Level< 50dB
    Temperature0°C – 40°C
    Humidity20% - 90% RH (non-condensing)
    Logistics
    IEC 62040-3 classificationVFI-SS-111
    Package ContentUPS, Manual, USB Cable, Input Power Cable
    Manual LanguagesEN/ES/PL
    EAN4260074977127
    Width145 mm
    Height220 mm
    Depth397 mm
    Weight17 kg
    Giftbox - Width230 mm
    Giftbox - Height325 mm
    Giftbox - Depth472 mm
    Giftbox - Weight18.5 kg
    Pcs. per box1
