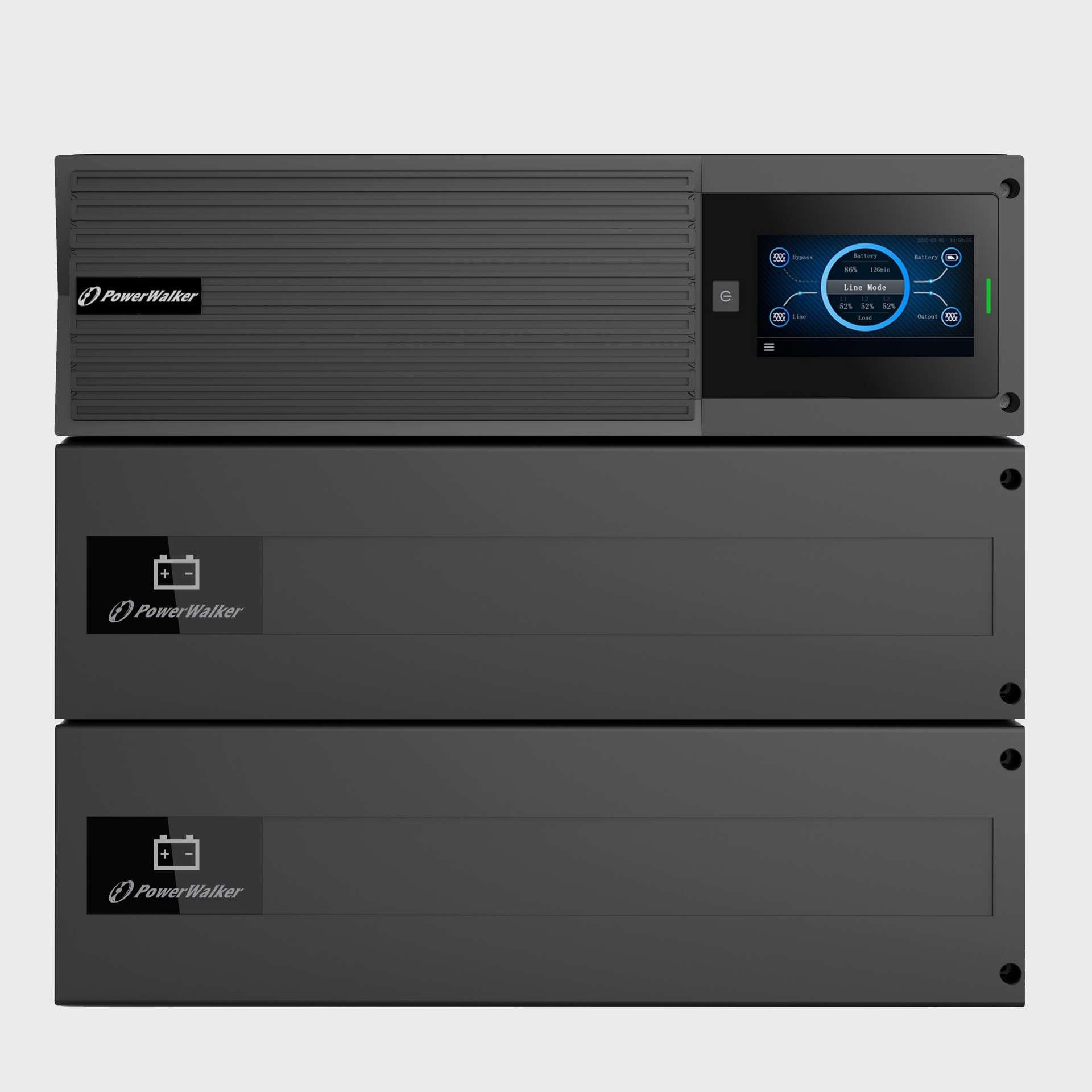

Powerwalker VFI 20000 ICR IoT 3/3 Art no. 10122232

The PowerWalker VFI 10k-20k ICR IoT 3/3 series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This Three-Phase UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. It also features a very advanced Touch-Panel. Watch the product presentation on YouTube: PowerWalker VFI ICT/ICR IoT 3-Phase The UPS requires 2 (EBMs) battery modules per string. For further information regarding this UPS model, contact us or our neareast sales representative! The UPS is available in 2 different Variations: ICR: Complete Solution including 2 battery packs ICRE: ONLY the UPS engine without battery pack and MBS/PDU

SKU: PUP0181

Manufacturer part number: 10122232

Availability: Out of stock

€6290.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Online Three Phase (VFI)
Phases (IN-OUT)	3-3
Form Factor	Rack, Tower
Rack Units [U]	9U
Power Capacity	20000VA / 20000W
Output Power Factor	1
INPUT
Input Voltage Range	190-520 VAC @ 0-50% Load, 277-520 VAC @ 50-100% Load
Max THDi	<3% linear load; <5% non-linear load
Frequency Range	40Hz – 70Hz
Frequency (Synchronized Range)	50Hz or 60Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	220/230/240 VAC
THDv	≤1% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0,1Hz
INPUT & OUTPUT CONNECTORS
Input Connector	Terminal
Terminal Output	Yes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	96.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	<10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	2ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	0ms
Load Crest Ratio	3:1 (max)
Additional Features	ECO Mode Available, CVCF Mode Available, OBM – Optimized Battery Management, Parallel Connectivity, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, HID – Human Interface Device, REPO – Remote Emergent Power-Off, Dual Input Option, Advanced Touch-Display, AVR – Automatic Voltage Regulator, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification	VFI-SS-111
BATTERIES AND AUTONOMY
Batteries	2.0x20x 12.0V/9.0Ah
DC Voltage	20x 12.0V
Additional Batteries Information	The UPS requires 2 Battery Modules per String
Recharge Time	4-6h to 90%
Full Load Backup Time [min]	3.8
Half Load Backup Time [min]	9.0
Charger	1A-13A [1.4A]
External Battery Pack	Yes
COMMUNICATION
Communication	Dry contact, USB Type B – for Monitoring Software, RS-232, WLAN Port – for Internet Connection, RJ-45 – for Internet Connection, Management Card Slot, Modbus TCP
Software	WinPower
Parallel Operation [Units]	3
ENVIRONMENT
Noise Level	< 55db
Fan Logic	Always on, Automatic Speed Control
Temperature	0°C – 40°C (40°C – 50°C @50% load)
Humidity	0% – 95% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Bundle (Please see additional packaging information)
EAN	4260074983593
Product Dimensions (DxWxH) [mm]	559 x 438 x 390 mm
Product Weight [kg]	145.3
Addtional Packaging Information	This is aBundle Product.For theindividual packaging information please look at the followingArticle Number:10122220(UPS Engine) +10124056(2xEBM).
Pcs. per Outer Carton	1
Pcs. per Layer	1
Pcs. per Pallet	1
