PowerWalker VFI 2000 CRM LCD/UK Art No. 10122019

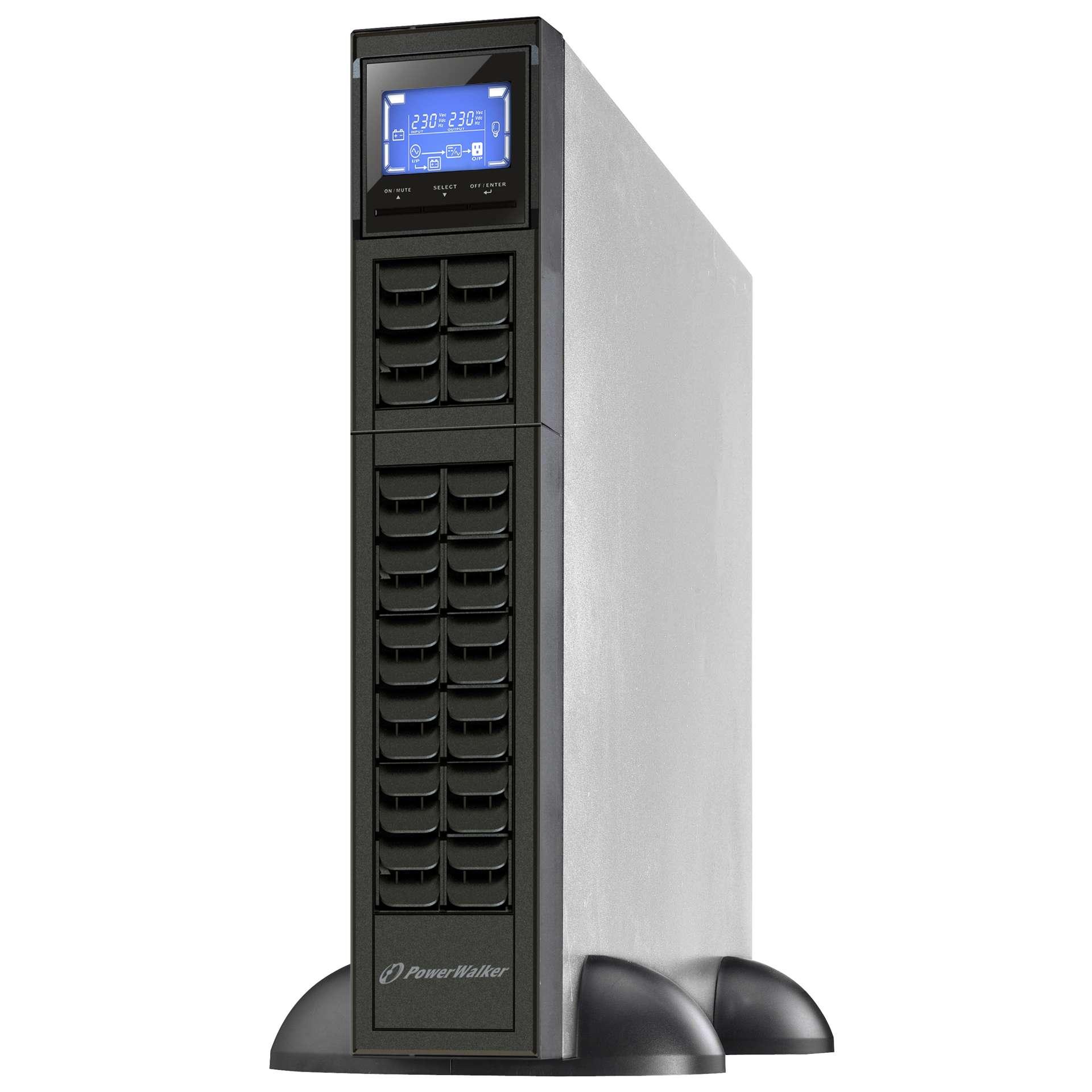

With true double-conversion online UPS design, PowerWalker VFI CRM LCD series and its long-run version VFI CRS LCD series provide powerful and overall protection to your sensitive devices. It can accept wide input voltage for harsh environment. It offers full protection for critical devices such as sensitive servers, network/telephone communication systems as well as for industrial applications. With its slim design it only requires 2U or 3U (in case of 10kVA unit) of valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.

SKU: PUP0074

Manufacturer part number: 10122019

Availability: 2 in stock

€606.00 incl VAT

Qty:

i h

Type Online
Power capacity 2000VA / 1600W
Output Power Factor 0.80
Input
Input Voltage Range 110-300 VAC at 50% load
160-280 VAC at 100% load
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz (self-adaptive to 50/60Hz)
Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
Output
Nominal Output Voltage 200/208/220/230/240 VAC
Pure Sine Wave Yes
THDv ≤3% Full Linear Load; ≤6% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±1%
Frequency (Battery Mode) ±0,3Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity N/A
External Battery Connection Yes
Charger 1A
Fan Logic Always on, automatic speed control
LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, Discharge Timer, fault conditions
Efficiency
LINE mode full Load 89.0%
BATTERY mode full Load 87.0%
Batteries and autonomy time
Batteries 4x 12V/9Ah
DC Voltage 4 x 12V
Recharge Time 9h to 90%
Full Load Backup Time 4min
Half Load Backup Time 12min
Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software ViewPower
USB port Yes
RS-232 Port Yes
Extension Slot Yes, 1
Environment
Noise Level < 50dB
Temperature 0°C – 40°C
Humidity 20% - 90% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-111
Package Content UPS, Manual, USB Cable, Input Power Cable, Tower Holder, Rack Ears
Manual Languages EN/DE/PL
EAN 4260074977936
Width 438 mm
Height 88 mm
Depth 410 mm
Weight 19 kg
Giftbox - Width 600 mm
Giftbox - Height 240 mm
Giftbox - Depth 760 mm
Giftbox - Weight 20 kg
Pcs. per box 1
