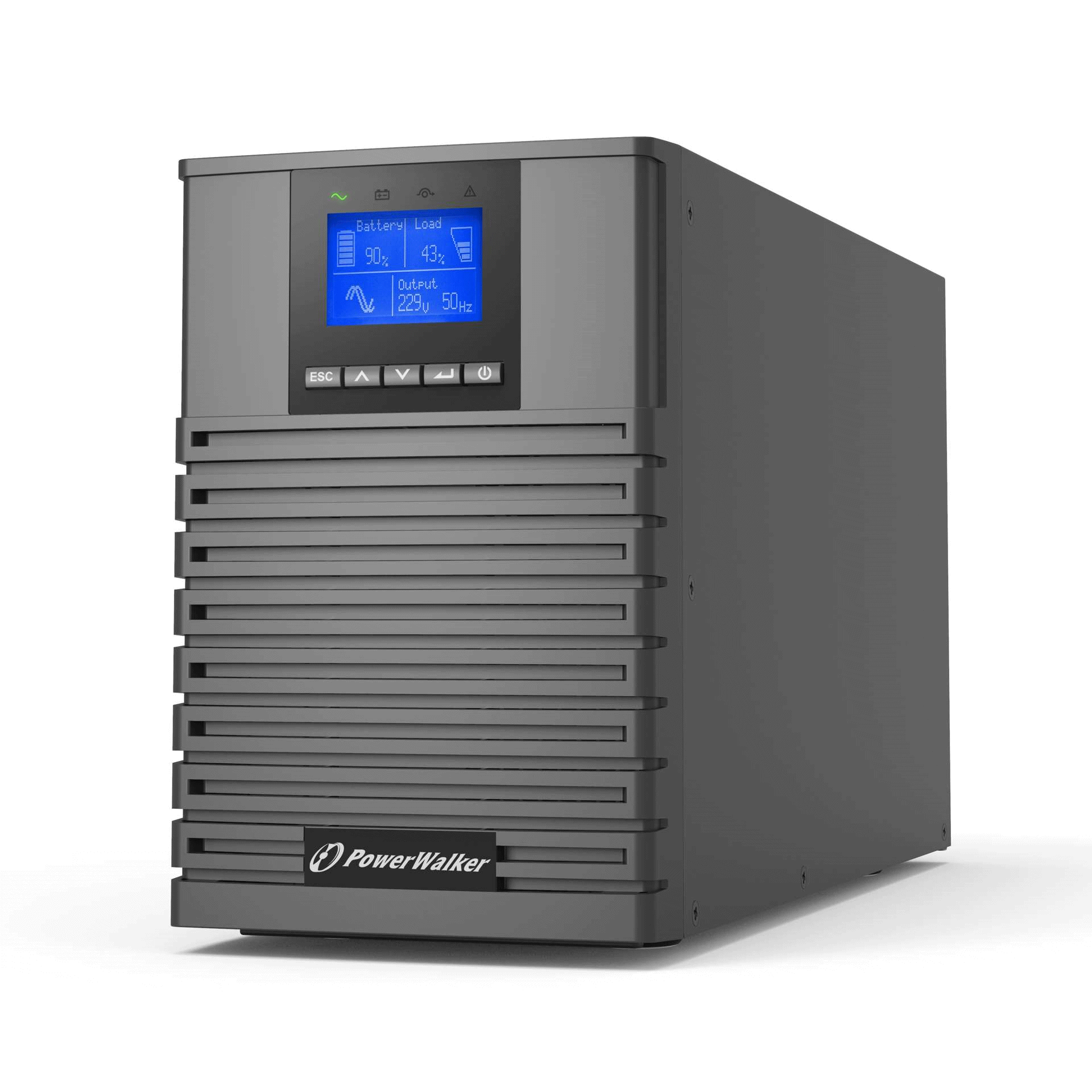

Powerwalker VFI 1500 ICT IoT UK Art no. 10122205

Manufacturer: Powerwalker

IoT Solution with the PW-WinPower App Output Power Factor 1.0 Optimized Battery Management (OBM) – for longer Battery Life EBM Auto-Detection for easy setup of External Baterry Packs Multifunctional-LCD Internet Options: LAN Cable or WLAN Dongle The PowerWalker VFI 1000-3000 ICT IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

SKU: PUP0158

Manufacturer part number: 10122205

Availability: Out of stock

€446.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1
Form Factor Tower
Power Capacity 1500VA / 1500W
Output Power Factor 1
INPUT
Input Voltage Range 160-300V 100% load, 110-160V derating to 50% load linearly
Max THDi ≤5%
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz @ load>60%
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 200/208/220/230/240 VAC
(derating 10% @ 208V, derating 20% @ 200V)
THDv ≤1% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0.2Hz
INPUT & OUTPUT CONNECTORS
Input Connector C14-UK
Output Type IEC – UK
IEC C13 4
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 89.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 4ms
Load Crest Ratio 3:1
Additional Features CVCF Mode Available, OBM – Optimized Battery Management, LCD Display, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification VFI-SS-311
BATTERIES AND AUTONOMY
Batteries 3x 12.0V/9.0Ah
DC Voltage 3x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 3.5
Half Load Backup Time [min] 9.6
Charger 1.5A
External Battery Pack Yes
COMMUNICATION
Communication Dry contact, RS-232, WLAN Port – for Internet Connection, Management Card Slot, RJ-45 – for Internet Connection
Software WinPower
ENVIRONMENT
Noise Level < 45dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 45°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
