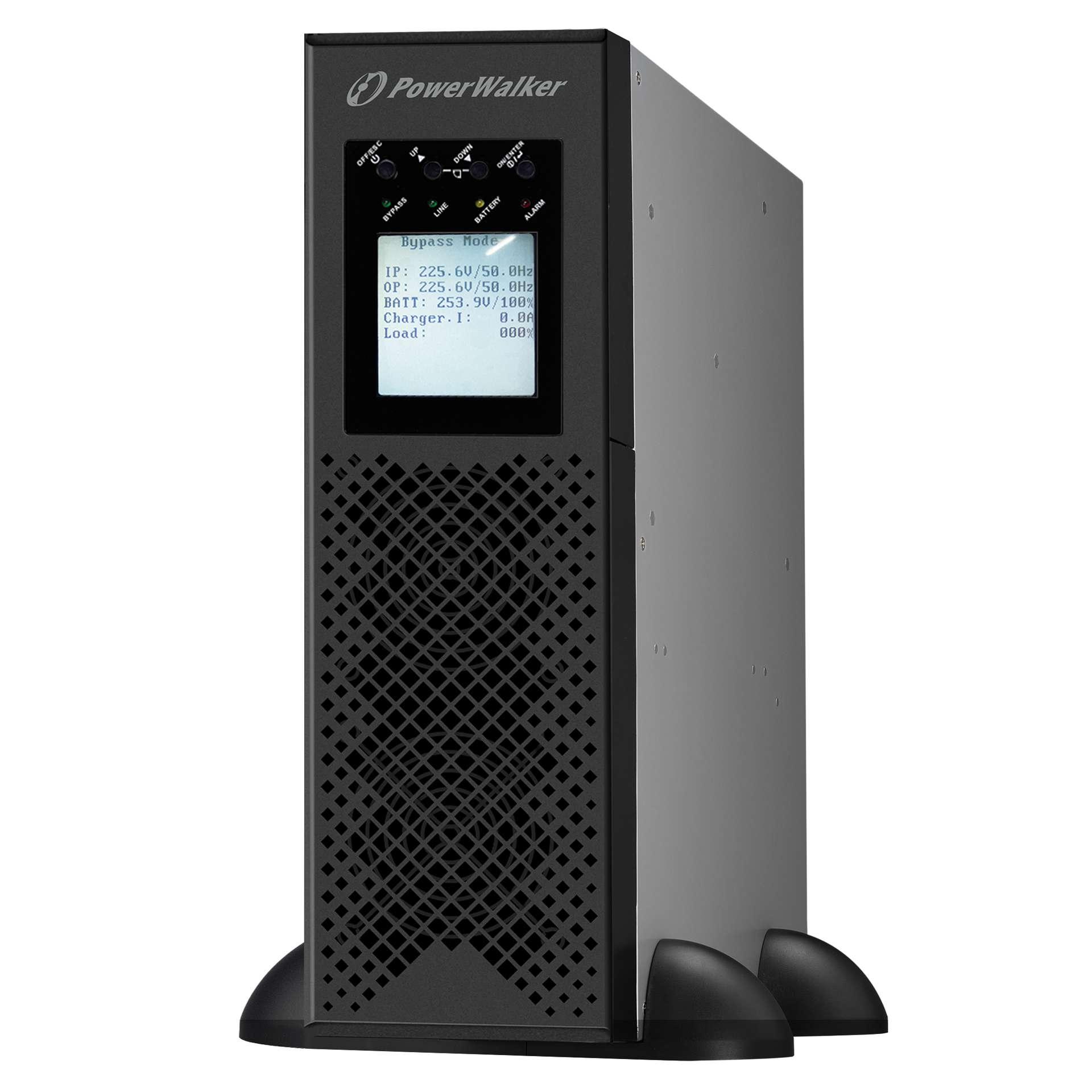

PowerWalker VFI 10K CPH 3/1 Art. No. 10122168

PowerWalker VFI CPH 3/1 series is an innovative Online solution for a variety of applications. This 10kW UPS can work standalone as a tower or rack solution, or it can be installed as part of a modular N+X system. As a rack unit, the UPS fits into any standard 19″ rack cabinet and occupies a space of 3U (6U with a compatible battery pack). Using the included connection box installation is convenient and easy. Alternatively, PowerWalker provides a specifically designed 12U rack cabinet with an advanced 10″ Touch-Panel allowing a high-degree of comfort during operation. Inside this cabinet you can either install four CPH units or share the space between UPS and battery modules. In a modular setup all modules are hot-swappable and work parallel redundant. Additionally, each UPS can be controlled and monitored separately using an independent LCD-Display. This ensures high reliability, flexibility and ease of maintanance. The PowerWalker VFI CPH is an all-encompassing three-phase solution! This series offers a variety of combinations for any standard 19″ rack cabinet! Therefore, we recommend that you contact us for more details, for a customized solution! The VFI CPH: 1 Module, 3 Solutions: Tower/ Rack: Stand-Alone Solution PW 17U Rack Cabinet Solution (10132005): Share 12U between UPS and CPH Battery Packs | Includes Controller Module (10131014) + 10″ Touch Panel (10139017) Personalized Solution: Make use of a standard 19″ rack cabinet and operate up to 10 units in parallel with external batteries.

SKU: PUP0148

Manufacturer part number: 10122168

Availability: Out of stock

€1790.00 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Online Three Phase (VFI)
Phases (IN-OUT)	3-1
Form Factor	Rack, Tower
Rack Units [U]	3U
Power Capacity	10000VA / 10000W
Output Power Factor	1.00
INPUT
Input Voltage Range	190-520 VAC (3-phase) @ 50% load; 305-478 VAC (3-phase) @ 100% load
Max THDi	< 5% @ full linear load
Frequency Range	40Hz – 70Hz
Frequency (Synchronized Range)	46Hz – 54Hz or 56Hz – 64Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	208/220/230/240VAC (L+N)
THDv	≤2% @ 100% linear load, ≤4% @ 100% non-linear load
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0.1Hz
INPUT & OUTPUT CONNECTORS
Input Connector	Terminal
Terminal Output	Yes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	93.0
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	0ms
Load Crest Ratio	3:1
Additional Features	ECO Mode Available, Hot-Swappable Batteries, APFC – High Input PF, Unity Power Factor 1.0, Generator Compatible, EPO – Emergency Power Off, Parallel Connectivity, LCD Display, Input Breaker, Output Breaker, Battery Pack Available, HID – Human Interface Device, Battery-Sharing
IEC 62040-3 classification	VFI-SS-111
BATTERIES AND AUTONOMY
Batteries	Batteries are not Included
DC Voltage	32x 12.0V
Additional Batteries Information	Designed to work with External Batteries
Adjustable Batteries in String	32-40
Charger	4A
External Battery Pack	Yes
COMMUNICATION
Communication	RS-232, USB Type B – for Monitoring Software
Software	ViewPower
Parallel Operation [Units]	10
ENVIRONMENT
Noise Level	< 55dB
Fan Logic	Always on, automatic speed control
Temperature	0°C – 40°C
Humidity	0% – 95% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Manual, UPS, Connector Box, Rack Kit
Manual Languages	EN
EAN	4260074981674
Product Dimensions (DxWxH) [mm]	678 x 418 x 129 mm
Product Weight [kg]	20.5
Package Dimensions (DxWxH) [mm]	870 x 580 x 250 mm
Package Weight [kg]	27.5
Addtional Packaging Information	The package includes a connector box (10131013) that its needed for the installation of the modules.
Pcs. per Outer Carton	1
