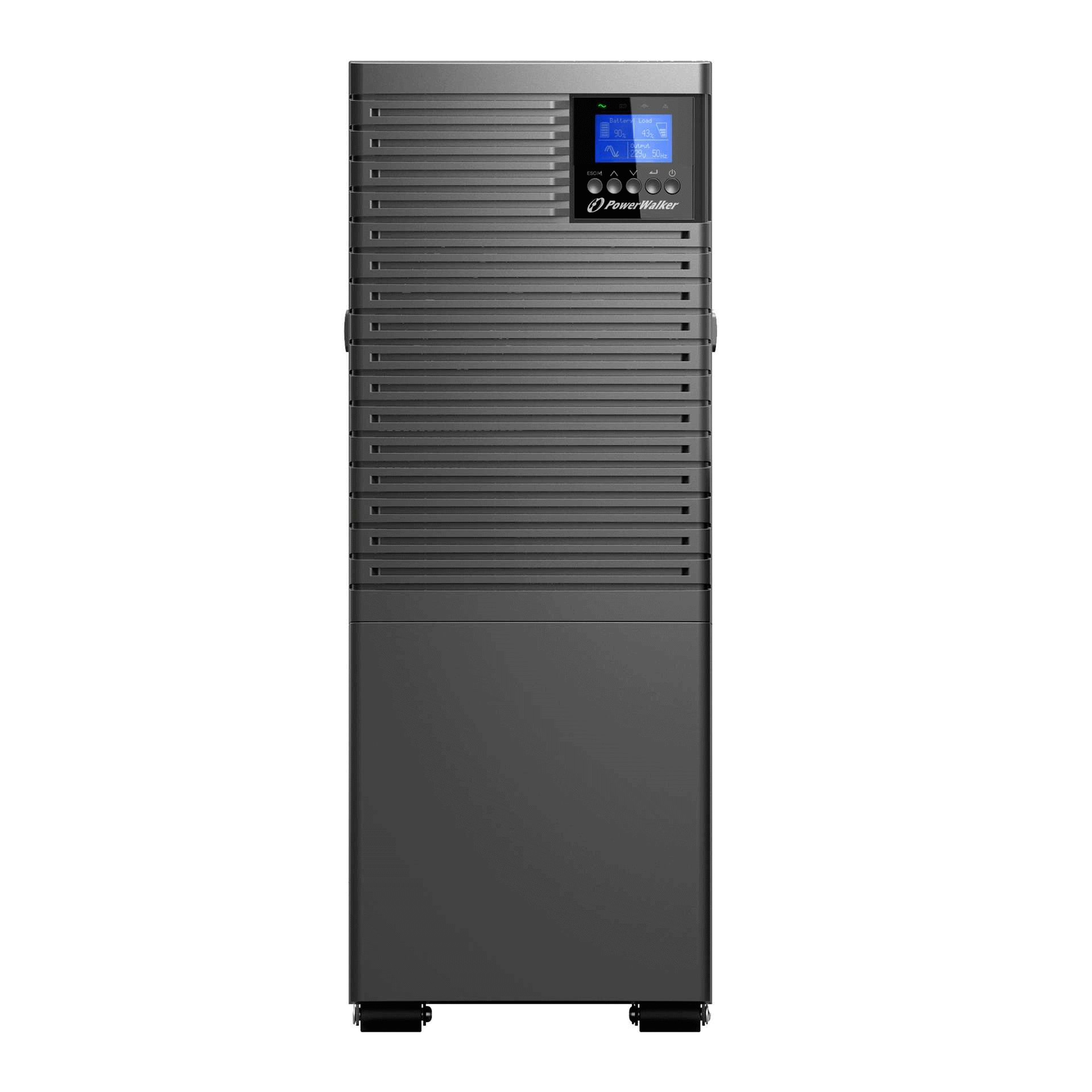

Powerwalker VFI 10000 ICT IoT 3/1 BI 10122215

Manufacturer: Powerwalker

IoT Solution with the PW-WinPower App Output Power Factor 1.0 Optimized Battery Management (OBM) – for longer Battery Life EBM Auto-Detection for easy setup of External Baterry Packs Parallel Operation, up to 3 units Internet Options: LAN Cable or WLAN Dongle The PowerWalker VFI 10k ICT IoT 3/1 series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This Three-Phase UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.

SKU: PUP0001

Manufacturer part number: 10122215

Availability: Out of stock

€2333.00 incl VAT

Qty:

i h

Type Online Three Phase (VFI)
Phases (IN-OUT) 3-1
Form Factor Tower
Power Capacity 10000VA / 10000W
Output Power Factor 1
INPUT
Input Voltage Range 110-276 VAC @ 0-50% Load,
160-276 VAC @ 50-100% Load (Ph-N).
190-478 VAC @ 0-50% Load,
277-478 VAC @ 50-100% Load (3Ph-N).

Max THDi <30% Three Phase; <5% Single Phase
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 50Hz or 60Hz
OUTPUT
Waveform Pure Sine Wave
Nominal Output Voltage 220/230/240 VAC
THDv ≤1% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Battery Mode) ±1%
Frequency (Battery Mode) ±0,1Hz
INPUT & OUTPUT CONNECTORS
Input Connector Terminal
Output Type Terminal
Terminal Output Yes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load) 95.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] <10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] <10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 0ms
Load Crest Ratio 3:1 (max)
Additional Features ECO Mode Available, CVCF Mode Available, OBM – Optimized Battery Management, Parallel Connectivity, LCD Display, Unity Power Factor 1.0, Battery Pack Available, IoT – Cloud Connectivity, Generator Compatible, HID – Human Interface Device, REPO – Remote Emergent Power-Off, AVR – Automatic Voltage Regulator, EBM – External Battery Module – Auto Detection
IEC 62040-3 classification VFI-SS-111
BATTERIES AND AUTONOMY
Batteries 20x 12.0V/9.0Ah
DC Voltage 20x 12.0V
Recharge Time 3h to 90%
Full Load Backup Time [min] 3.4
Half Load Backup Time [min] 9.1
Charger 1A-4A [2A]
External Battery Pack Yes
COMMUNICATION
Communication Dry contact, USB Type B – for Monitoring Software, RS-232, WLAN Port – for Internet Connection, RJ-45 – for Internet Connection, Management Card Slot, Modbus TCP
Software WinPower
Parallel Operation [Units] 3
ENVIRONMENT
Noise Level < 55db
Fan Logic
Always on, Automatic Speed Control

Temperature 0°C – 40°C (40°C – 50°C @50% load)
Humidity 0% – 95% RH (non-condensing)
IP IP 20
