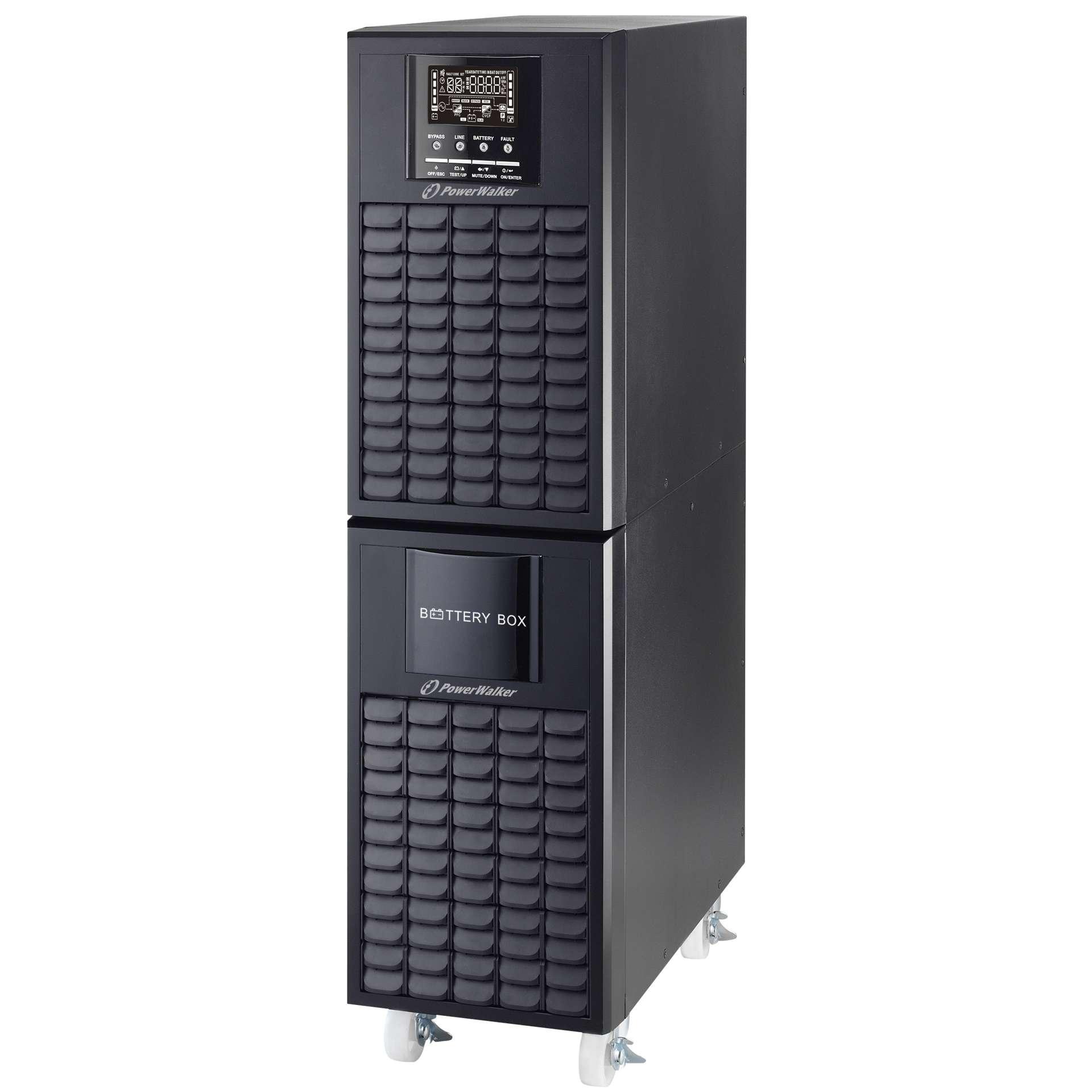

PowerWalker VFI 10000 CG PF1 Art No. 10122049

Manufacturer: Powerwalker

The PowerWalker VFI 6k-10k CG PF1 is a professional Online series for commercial applications featuring unity Power Factor (PF = 1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. They can present very low harmonic distortions (<1%) and high efficiency (up to 94%). Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD or remotely via the PowerWalker ViewPower software.

SKU: PUP0124

Manufacturer part number: 10122049

Availability: Out of stock

€1955.80 incl VAT

Qty:

i h

GENERAL FEATURES
Type	Online Single Phase (VFI)
Phases (IN-OUT)	1-1
Form Factor	Tower
Power Capacity	10000VA / 10000W
Output Power Factor	1.00
INPUT
Input Voltage Range	110-300 VAC @ 0-60% load 140-300 VAC @ 60-80% load 176-300 VAC @ 80-100% load
Max THDi	≤4% @ 100% load; ≤6% @ 50% load
Frequency Range	50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range)	46Hz – 54Hz or 56Hz – 64Hz
OUTPUT
Waveform	Pure Sine Wave
Nominal Output Voltage	208/220/230/240 VAC
THDv	≤1% @ 100% linear load, ≤4% @ 100% non-linear load
Voltage Regulation (Battery Mode)	±1%
Frequency (Battery Mode)	±0.1Hz
INPUT & OUTPUT CONNECTORS
Input Connector	Terminal
Output Type	Terminal
Terminal Output	Yes
TECHNICAL DETAILS
LINE Mode Efficiency [%] (Full Load)	94.0
Battery Mode Efficiency [%] (Full Load)	91.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms]	<10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms]	0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms]	<10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms]	0ms
Load Crest Ratio	3:1
Additional Features	Earthing System Available, Parallel Connectivity, LCD Display, Unity Power Factor 1.0, Input Breaker, Battery Pack Available, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification	VFI-SS-111
BATTERIES AND AUTONOMY
Batteries	20x 12.0V/9.0Ah
DC Voltage	20x 12.0V
Recharge Time	9h to 90%
Full Load Backup Time [min]	2.8
Half Load Backup Time [min]	8.4
Charger	1A, 2A, 4A
External Battery Pack	Yes
COMMUNICATION
Communication	USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software	ViewPower
Parallel Operation [Units]	2
ENVIRONMENT
Noise Level	< 58dB
Fan Logic	Always on, Automatic Speed Control
Temperature	0°C – 40°C
Humidity	20% – 95% RH (non-condensing)
IP	IP 20
LOGISTICS
Package Content	Manual, USB Cable, UPS
Manual Languages	DE, EN
EAN	4260074978667
Product Dimensions (DxWxH) [mm]	442 x 190 x 688 mm
Product Weight [kg]	67.0
Package Dimensions (DxWxH) [mm]	570 x 310 x 785 mm
Package Weight [kg]	88.0
Pcs. per Outer Carton	1
