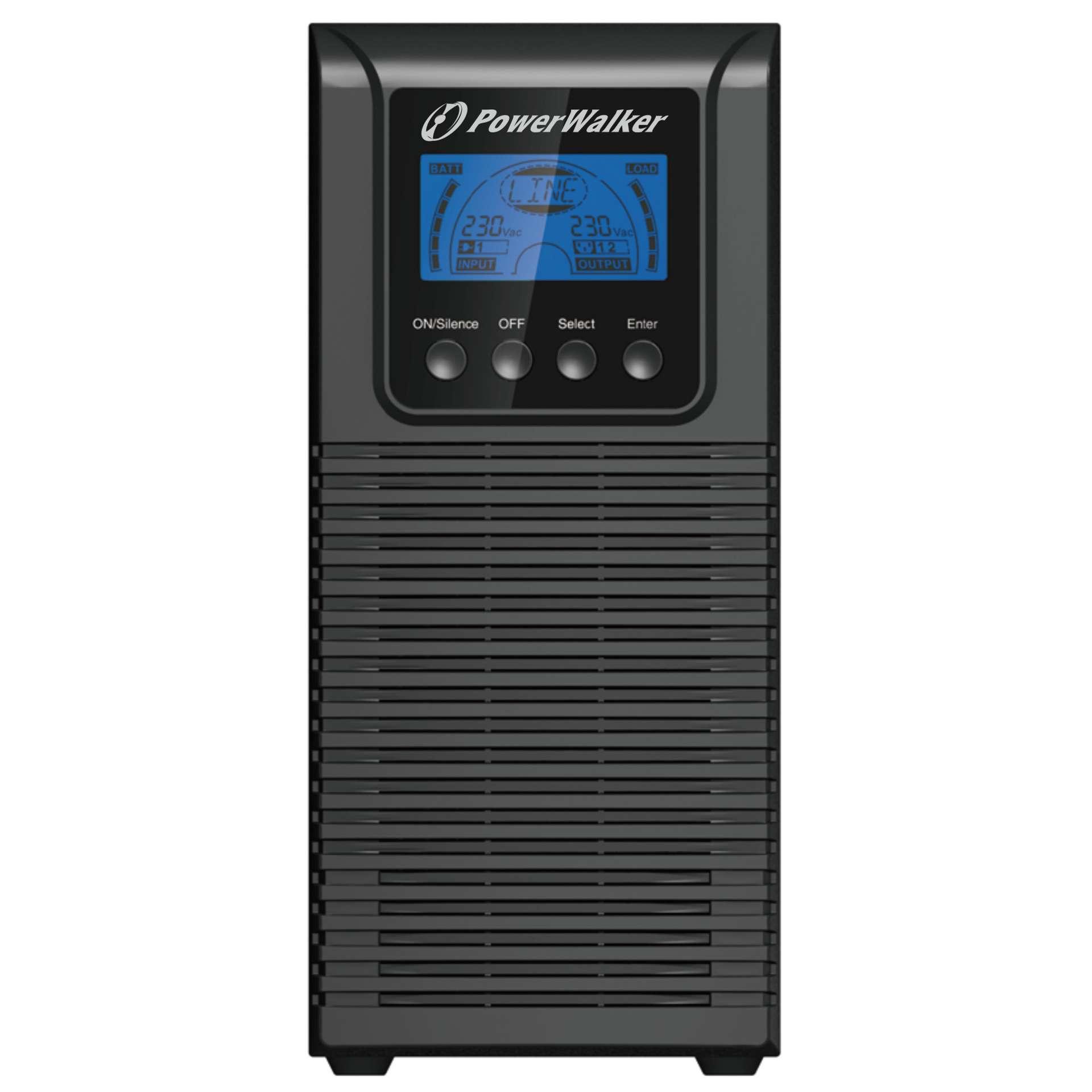

GENERAL FEATURES |
Type | Online Single Phase (VFI) |
Phases (IN-OUT) | 1-1 |
Form Factor | Tower |
Power Capacity | 1000VA / 900W |
Output Power Factor | 0.90 |
INPUT |
Input Voltage Range | 176-300 VAC or 80-285 VAC in Bypass Mode |
Max THDi | ≤5% |
Frequency Range | 40Hz – 70Hz |
Frequency (Synchronized Range) | 45Hz – 55Hz or 54Hz – 66Hz |
OUTPUT |
Waveform | Pure Sine Wave |
Nominal Output Voltage | 220/230/240 VAC |
THDv | ≤2% @ 100% linear load, ≤5% @ 100% non-linear load |
Voltage Regulation (Battery Mode) | ±2% |
Frequency (Battery Mode) | ±0.05Hz |
INPUT & OUTPUT CONNECTORS |
Input Connector | C14-UK |
Output Type | IEC – UK |
IEC C13 | 3 |
TECHNICAL DETAILS |
LINE Mode Efficiency [%] (Full Load) | 89.0 |
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] | 10ms |
Transfer Time (AC / Line Mode to Battery Mode) [ms] | 0ms |
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] | 10ms |
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] | 4ms |
Load Crest Ratio | 3:1 |
Additional Features | ECO Mode Available, CVCF Mode Available, LCD Display, Battery Pack Available, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, External Battery Compatible |
IEC 62040-3 classification | VFI-SS-111 |
BATTERIES AND AUTONOMY |
Batteries | Batteries are not Included |
DC Voltage | 2x 12.0V |
Additional Batteries Information | Designed to work with External Batteries |
Charger | 3A, 6A |
External Battery Pack | Yes |
COMMUNICATION |
Communication | USB Type B – for Monitoring Software, RS-232, Management Card Slot |
Software | WinPower |
ENVIRONMENT |
Noise Level | < 45dB |
Fan Logic | Always on, Automatic Speed Control |
Temperature | 0°C – 40°C |
Humidity | 0% – 95% RH (non-condensing) |
IP | IP 20 |
LOGISTICS |
Package Content | Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS |
Manual Languages | DE, PL, EN |
EAN | 4260074979398 |
Product Dimensions (DxWxH) [mm] | 346 x 102 x 229 mm |
Product Weight [kg] | 3.8 |
Package Dimensions (DxWxH) [mm] | 423 x 194 x 330 mm |
Package Weight [kg] | 4.5 |
Pcs. per Outer Carton | 1 |
