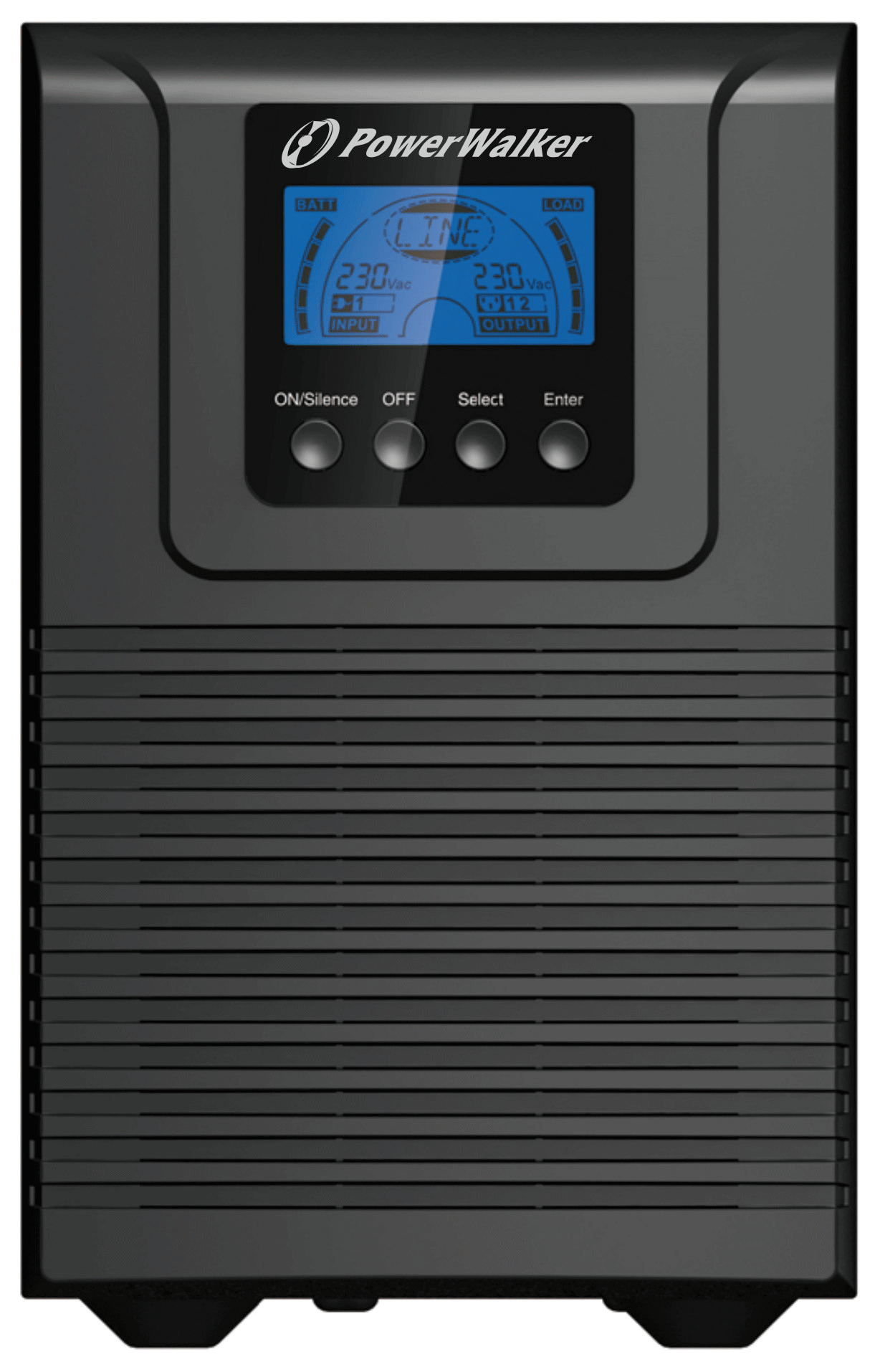

PowerWalker VFI 1000 TGB UK Art No. 10122134

The PowerWalker VFI TG/TGB/TGS is a professional and versatile online UPS solution for almost all single-phase applications. The UPS is available in different versions: TG: with internal batteries for regular backup times TGB: with internal batteries and connection for external battery packs for extended autonomy times TGS: without internal batteries, but with a powerful charger for very long autonomy times Thanks to the double converter technology, the UPS offers the best protection for sensitive systems. Additionally, the functionality is enhanced by the variety of communication options, such as HID, software or network cards.

SKU: PUP0092

Availability: 5 in stock

€306.00 incl VAT

Qty:

i h

General features
Type Online
Power capacity 1000VA / 900W
Output Power Factor 0.90
Input
Input Voltage Range 176-300 VAC or 80x285 VAC in bypass mode
Max THDi ≤5%
Input PF ≥ 0.99 at full load
Frequency Range 40Hz - 70Hz
Frequency (Synchronized Range) 45Hz - 55Hz or 54Hz - 66Hz
Output
Nominal Output Voltage 220/230/240 VAC
Pure Sine Wave Yes
THDv ≤2% Full Linear Load; ≤5% Non-Linear Load
Voltage Regulation (Bat. Mod.) ±2%
Frequency (Battery Mode) ±0,05Hz
Technical details
Load Crest Ratio 3:1
Transfer Time [AC to Battery] 0ms
Transfer Time [Inverter to Bypass] 4ms
Generator support Yes
Overload Capacity Line: constant @100%-105%; 1min @105%-130%; 10s @130%-150%; 300ms @>150%; bypass at higher; BAT: 10s @100%-150%; cut-off at higher
External Battery Connection Yes
Charger 1.5A
Fan Logic Always ON;
Low speed: bypass/ECO or line mode with load below 70%
High speed: Battery mode or line mode with load above 70%
Efficiency
LINE mode full Load 89.0%
Batteries and autonomy time
Batteries 2x 12V/9Ah
DC Voltage 2 x 12V
Recharge Time 4h to 90%
Full Load Backup Time 3.7min
Half Load Backup Time 10.5min
Connections and communication
IEC C13 Outlet 4
Input C14-UK
Software WinPower
USB port Yes
HID Support Yes
RS-232 Port Yes
Extension Slot Yes, 1
EPO Port Yes
Environment
Noise Level < 45dB
Temperature 0°C – 40°C
Humidity 0% - 95% RH (non-condensing)
Logistics
IEC 62040-3 classification VFI-SS-311
Package Content UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable
Manual Languages EN/DE/PL
EAN 4260074980356
Width 144 mm
Height 229 mm
Depth 356 mm
Weight 9.3 kg
Giftbox - Width 240 mm
Giftbox - Height 330 mm
Giftbox - Depth 436 mm
Giftbox - Weight 11 kg
