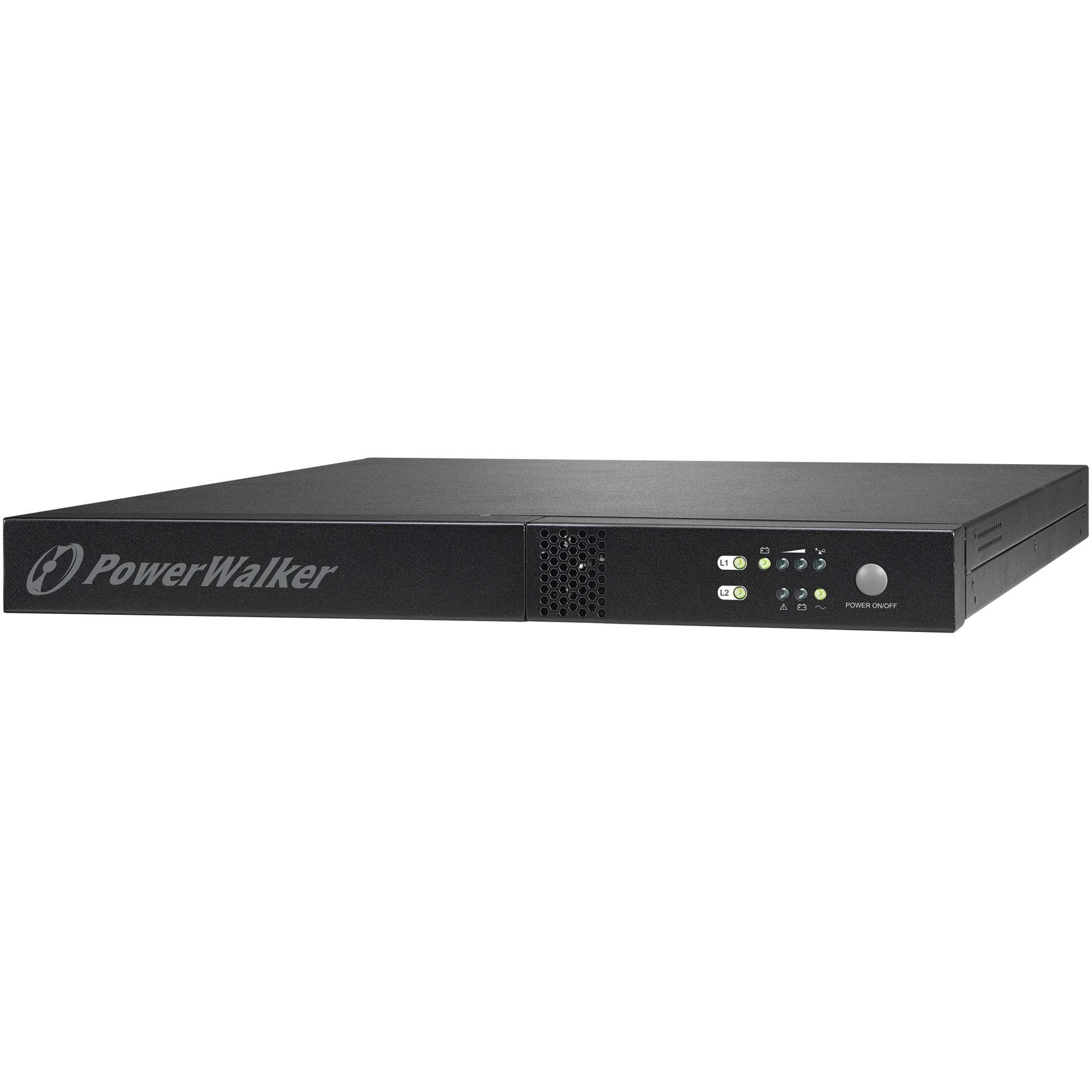

    PowerWalker VFI 1000 R1U UK Art. No. 10120707

    Manufacturer: Powerwalker
    The PowerWalker VI R1U is a line interactive 1U rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting. It is equipped with pure sine wave output and an optional card slot for network cards, so that even sensitive and critical loads can be kept safe. The PowerWalker VI R1U is a flexible all-rounder for home and semi-professional environments.
    SKU: PUP0150
    Availability: Out of stock
    €635.00 incl VAT
    i h


    General features
    Type Line-Interactive
    Power capacity 1000VA / 600W
    Output Power Factor 0.60
    Input
    Input Voltage Range 165-290 VAC
    Frequency (Synchronized Range) 50Hz or 60Hz
    Output
    Nominal Output Voltage 230 VAC
    Pure Sine Wave Yes
    THDv ≤3% Full Linear Load; ≤5% Non-Linear Load
    Voltage Regulation (Bat. Mod.) ±10%
    Frequency (Battery Mode) ±0,5Hz
    Technical details
    Transfer Time [AC to Battery] 4ms typical
    Charger 1A
    Protection Overload protection on utility: fuse; on battery: internal current limiting
    Efficiency
    LINE mode full Load 95.0%
    Energy Star compliance
    Batteries and autonomy time
    Batteries 4x 6V/7Ah
    DC Voltage 4 x 6V
    Recharge Time 8h to 90%
    Full Load Backup Time 0.8min
    Half Load Backup Time 10.3min
    Connections and communication
    IEC C13 Outlet 4
    Input C14
    Software PowerMaster
    USB port Yes
    HID Support Yes
    RS-232 Port Yes
    Extension Slot Yes, 1
    EPO Port Yes
    Environment
    Noise Level No Fan
    Temperature 0°C – 40°C
    Humidity 0% - 90% RH (non-condensing)
    Logistics
    Package Content UPS, Manual, USB Cable, Input Power Cable, Rack Ears
    Manual Languages EN
    EAN 4260074980400
    Width 433 mm
    Height 44 mm
    Depth 485 mm
    Weight 14.2 kg
    Giftbox - Width 553 mm
    Giftbox - Height 150 mm
    Giftbox - Depth 475 mm
    Giftbox - Weight 16.5 kg
