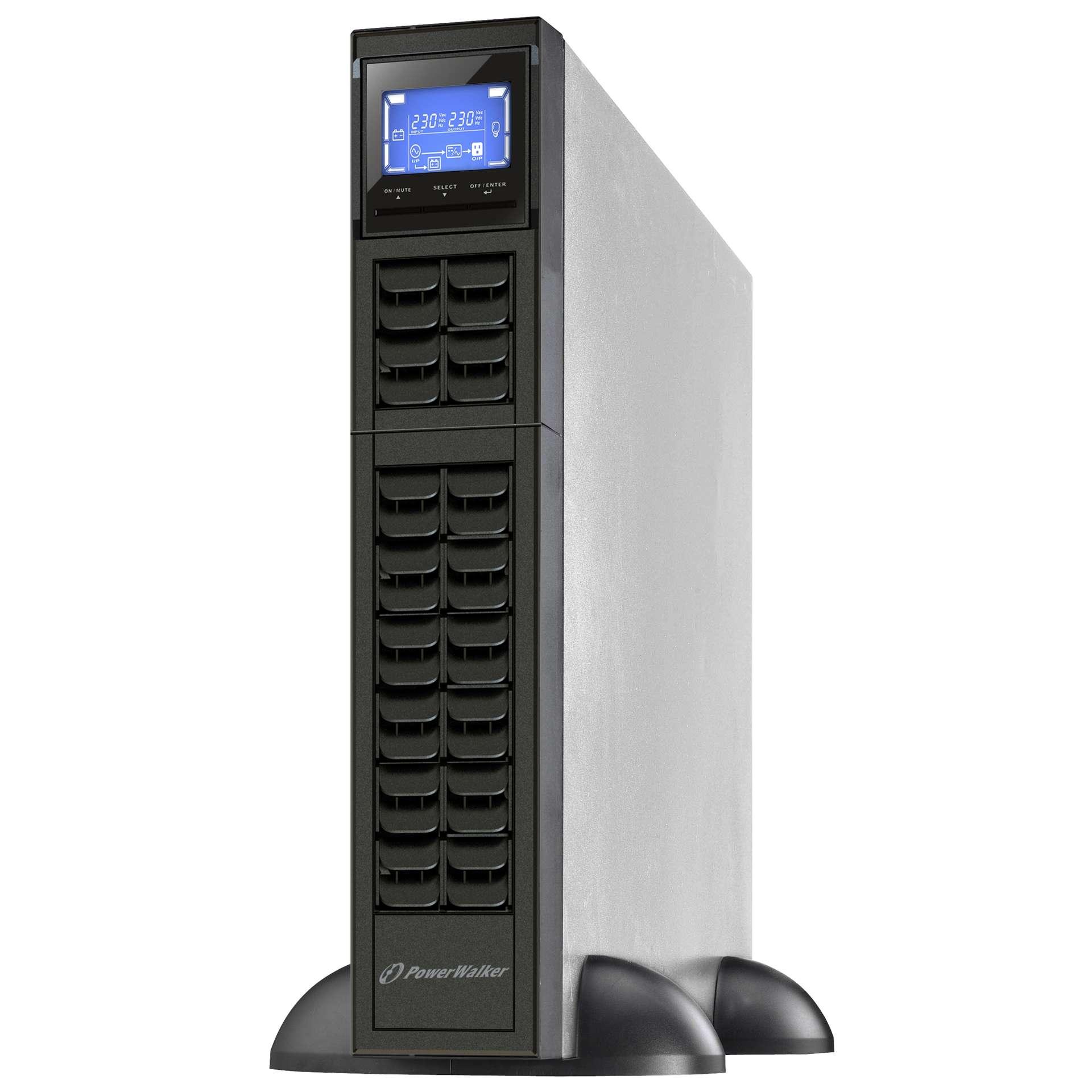

    PowerWalker VFI 1000 CRM LCD/UK Art No. 10122018

    Manufacturer: Powerwalker
    Protect your devices in case of a power outage
    SKU: PUP0073
    Manufacturer part number: 10122018
    Availability: 4 in stock
    €385.00 incl VAT
    i h


    General functions
    Type Online
    Energy capacity 1000VA / 800W
    Outgoing energy factor 0.80
    Input
    Incoming voltage range 110-300 VAC at 50% load
    160-280 VAC at 100% load
    Input PF ≥ 0.99 at full load
    Frequency range 40Hz - 70Hz (self-adaptive to 50/60Hz)
    Frequency (Synchronized Range) 47Hz - 53Hz or 57Hz - 63Hz
    Output
    Nominal output voltage 200/208/220/230/240 VAC
    Stepper sine wave And
    THDv ≤3% Full Linear Load; ≤6% Non-Linear Load
    Voltage regulation ±1%
    Frequency (Battery Mode) ± 0.3Hz
    Technical details
    Load Crest Ratio 3:1
    Transfer Time [AC to Battery] 0ms
    Transfer Time [Inverter to Bypass] 4ms
    Generator support And
    Overload Capacity N/A
    External Battery Connection And
    Charger 1A
    Fan Logic Always on, automatic speed control
    LCD Indicators UPS status, Load level, Battery level, Input/Output voltage, Discharge Timer, fault conditions
    Efficiency
    LINE mode full Load 88.0%
    Batteries and autonomous time
    Batteries 2x 12V / 9Ah
    DC Voltage 2 x 12V
    Recharge Time 9h to 90%
    Full Load Backup Time 4min
    Half Load Backup Time 11min
    Connections and communication
    IEC C13 Outlet 3
    Input C14-UK
    Program ViewPower
    USB port And
    RS-232 Port And
    Extension Slot And, 1
    Environment
    Noise level < 50dB
    temperature 0°C – 40°C
    Moisture 20% - 90% RH (non-condensing)
    logistics
    IEC 62040-3 classification VFI-SS-111
    Package Content UPS, Manual, USB Cable, Input Power Cable, Tower Holder, Rack Ears
    Manual Languages AND / DE / PL
    EAN 4260074977929
    Width 438 mm
    Weight 88 mm
    Depth 310 mm
    Weight 12 kg
    Giftbox - Width 500 mm
    Giftbox - Weight 180 mm
    Giftbox - Deep 400 mm
    Giftbox - Weight 13.5 kg
