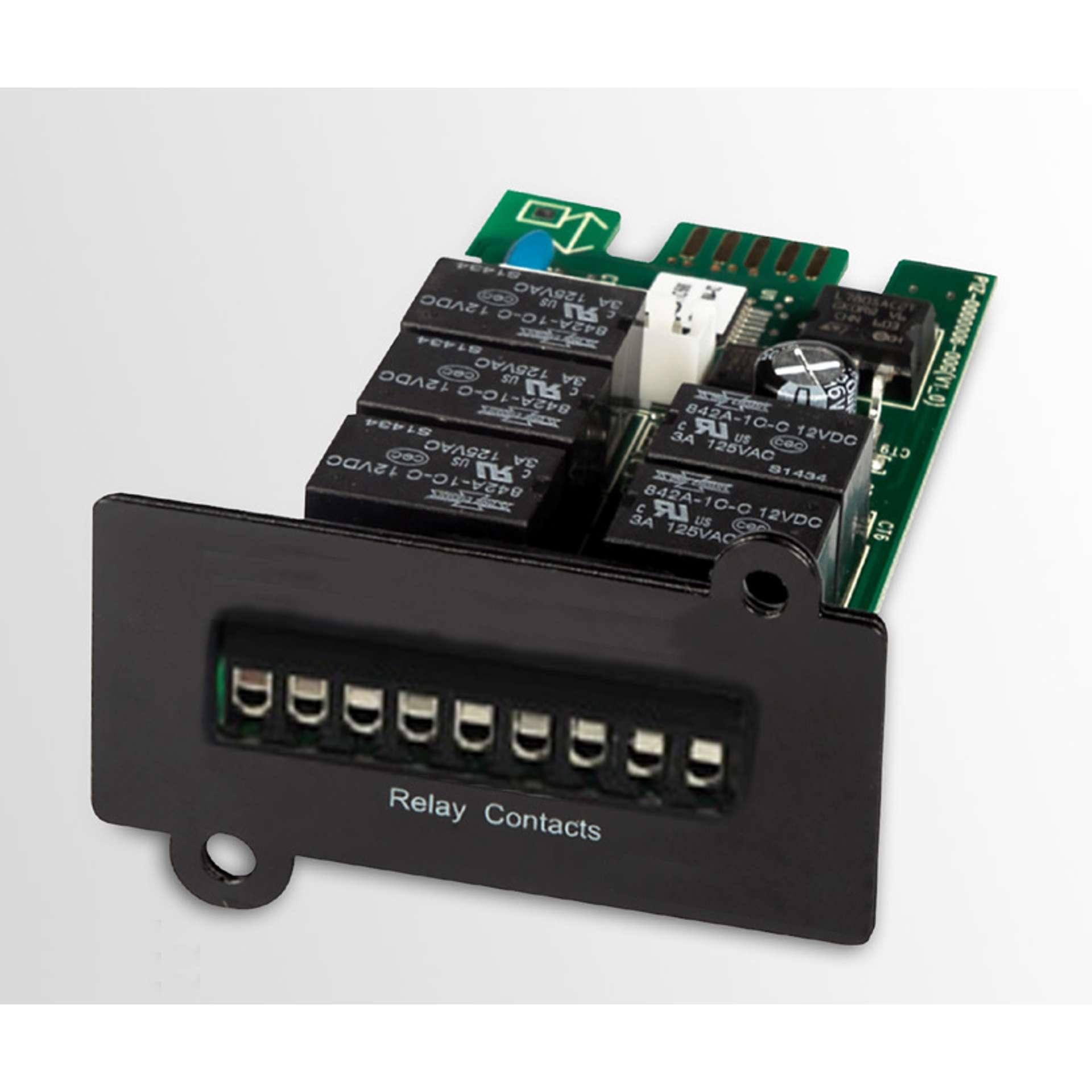

PowerWalker Mini AS400 Card 6 Art. No. 10131011

AS400 Cards provide clean dry contacts for remote shutdown and monitoring of a UPS. It is frequently used along with PLCs and signal control panels. Information delivered are UPS failure, Alarm, Main Fail, Bypass, Battery Low, UPS On. Using AS/400 it possible to shutdown UPS remotely. Solution requires external 12V/24VDC source for a high signal. Pin assignment is available in User’s Manual.

SKU: PUA0006

Manufacturer part number: 10131011

Availability: Out of stock

€130.99 incl VAT

Qty:

i h

Input
Input Voltage Range	Solution requires external 7.5 – 12VDC source for a High Signal with Max. 1A. Supply 12VDC to the COMMON contact and connect LEDs to the pins 1, 2 and 6 to 9. Connect a push button to COMMON (Pin5) and REMOTE SHUTDOWN (Pin4). Pressing the button for at least 5 seconds will shutdown the UPS when it is on battery. Note: When the UPS is on battery, the REMOTE SHUTDOWN input (Pin4 Output Connectors
Input Connector	Dry Contacts
Logistics
Package Height [mm]	60
Package Width [mm]	170
Package Depth [mm]	165
Package Weight [kg]	0.1
Product Height [mm]	30
Product Width [mm]	55
Product Depth [mm]	80
Product Weight [kg]	0.0
Package Content	Manual, Product
EAN	4260074981247
Product Dimensions (DxWxH) [mm]	80 x 55 x 30 mm
Package Dimensions (DxWxH) [mm]	165 x 170 x 60 mm
