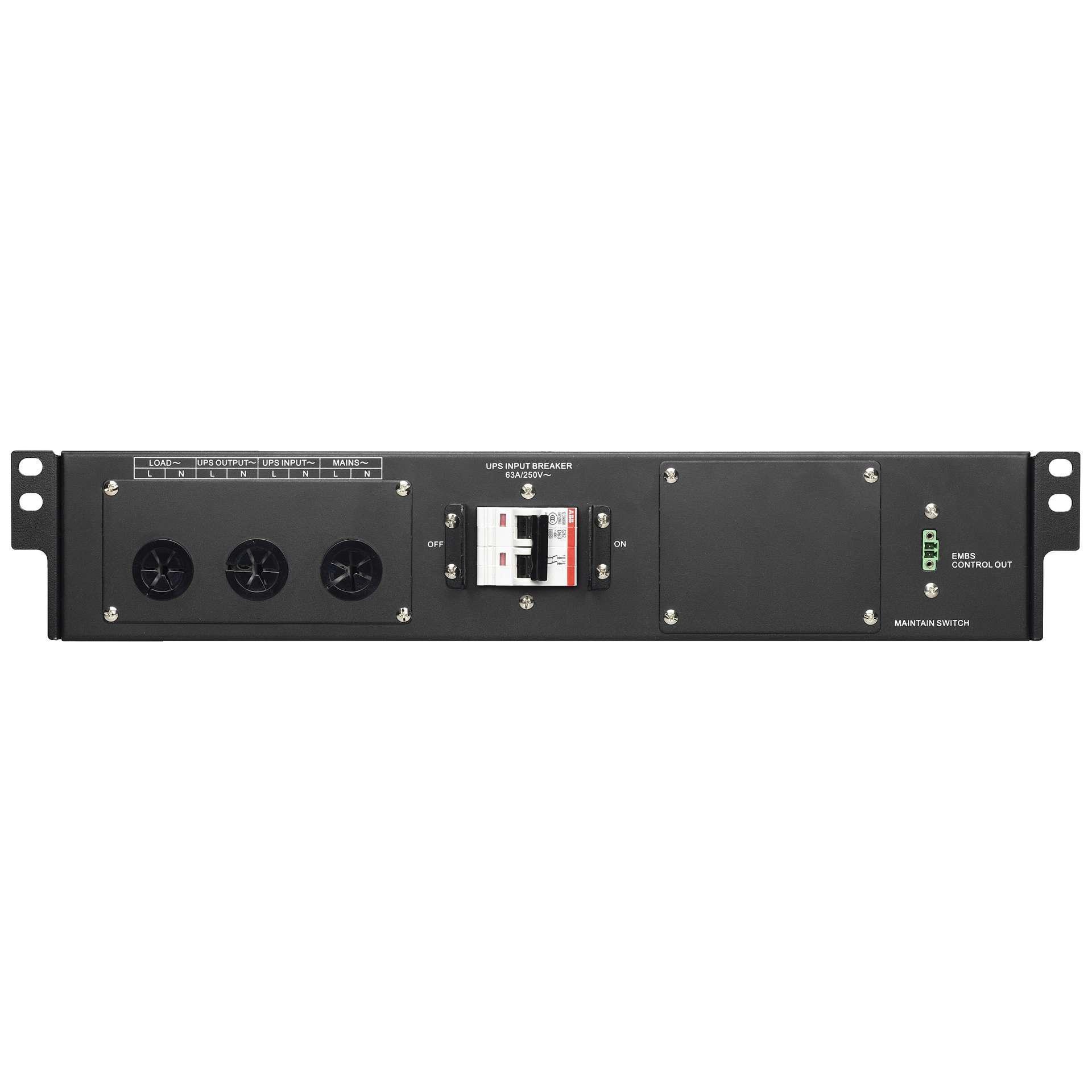

PowerWalker MBS/PDU 19in 6-10KVA for all 6-10KVA Rack/Tower Type UPS Art. No. 10120584

An external Maintenance Bypass Switch with function of a PDU (Power Distribution Unit). It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. As a PDU it allows to distribute the power among several loads. It is recommended for UPSs rated 5000-10000VA

SKU: PUA0022

Manufacturer part number: 10120584

Availability: Out of stock

€235.98 incl VAT

Qty:

i h

General Features
Phases (IN-OUT)	1-1
Form Factor	Rack, Multi-Socket
Rack Units [U]	2U
Input
Frequency Range	50Hz or 60Hz (self-adaptive)
Input & Output Connectors
Input Connector	Terminal
Terminal Output	Yes
Technical Details
Bypass	Manual – Bypass
Additional Features	Input Breaker
Management and Environment
Temperature	0°C – 40°C
Humidity	0% – 95% RH (non-condensing)
Logistics
Product Height [mm]	158
Product Width [mm]	438
Product Depth [mm]	86
Product Weight [kg]	3.0
Package Content	Product, Manual, Communication Cable
EAN	4260074976250
Product Dimensions (DxWxH) [mm]	86 x 438 x 158 mm
